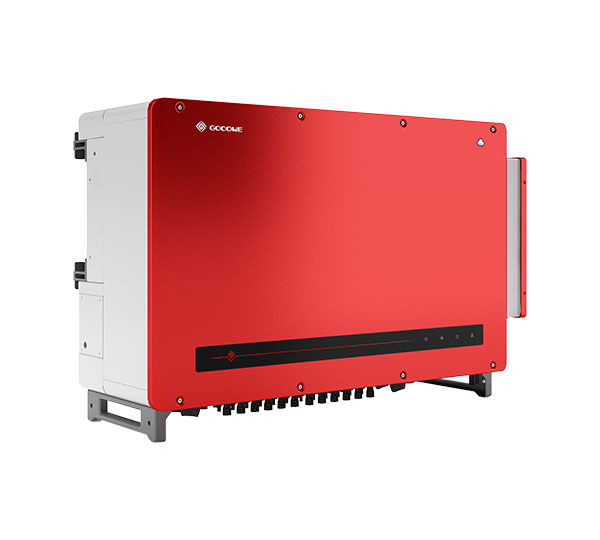

GW120K-HT (+DC-SWITCH/WIFI)
Three-phase string inverter with DC switch
Art. no.
8233969
Manufacturer No.
HTU120K-24-00P
Product details
Product information "GW120K-HT (+DC-SWITCH/WIFI)"
The new HT 1100Vdc Series is the ultimate high-power string inverter for the C&I sector. The HT series offers 12 MPPTs, and is compatible with Bi-facial modules, with a higher threshold of DC current (Max. 15A per string). It includes PLC communication, internal humidity detection. Configuration can be easily done via Bluetooth and firmware diagnosis & upgrading can be operated remotely. The HT series seamlessly incorporates different sets of technical strengths designed to achieve higher savings in the installation, enhance productivity and diversify available monitoring options, taking safety to the maximum possible level in accordance with the strictest industry standards.
Technical details
| Topology | transformerless |
|---|---|
| Max. output current (A) | 191.30 |
| Max. input current DC (A) total | 360.00 |
| Max. AC power (kVA) | 132.00 |
| Step-Up converter | no |
| Protection degree | IP66 |
| Max. input current per MPPT (A). | 30,0 |
| Start input voltage (V) | 200 |
| Max. short circuit current per MPPT (A) | 45,0 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 24 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.60 |
| Number of independent MPPT (pcs) | 12 |
| Display | w/o display |
| MPP min. voltage range input (V) | 180.00 |
| Integrated DC switch | yes |
| Min. temperature ambient (°C) | -30 |
| Max. short circuit current (A) total | 540.00 |
| European efficiency (%) | 98.30 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 120.00 |
| DC connector type | MC4 connectable |
| Max. generator power DC (kWp) | 180.00 |
| MPP max. voltage range input (V) | 1000.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | GoodWe |
| Manufacturer item name | GW120K-HT |
| Intrastat product number (HS-code) | 85044086 |
| Weight incl. packaging (Kg) | 120.000 |
|---|---|
| Pal. weight (kg) | 260.00 |
| Amount per Pallet | 2 |
| Pal. dim. LxBxH (mm) | 1210x880x1150 |
| Width incl. packaging (cm) | 84.50 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 117.50 |
| Height incl. packaging (cm) | 51.50 |
| Amount p. Cont. | 88 |
| Length without packaging (mm) | 678.00 |
|---|---|
| Weight without packaging (kg) | 98.500 |
| Width without packaging (mm) | 1008.00 |
| Height without packaging (mm) | 343.00 |
| Warranty provider | GoodWe |
|---|---|
| Product warranty (yr) | 5 |
