RF HB M12x200 PA BC
Hanger Bolt, pre-assembled, hexagonal WS 9mm
Art. no.
8220736
Manufacturer No.
2000123
Product details
Product information "RF HB M12x200 PA BC"

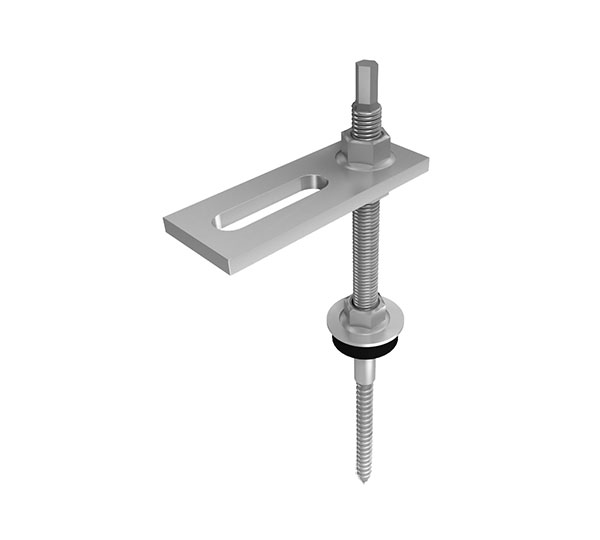

For fastening of K2 System parts on trapeze and wave shape roofs. The K2 Hanger Bolt is equipped with an extra long metric thread enabling variable height adjustment.
The screw is furnished with a hexagonal head, providing time saving installation with a power dril. Technical approval available.
The set consists of:
1 rafter screw
3 Collar nut with riffle, stainless steel
1 Rubber seal, EPDM
1 Washer, stainless steel
1 Adapter plate with long slot
The screw is furnished with a hexagonal head, providing time saving installation with a power dril. Technical approval available.
The set consists of:
1 rafter screw
3 Collar nut with riffle, stainless steel
1 Rubber seal, EPDM
1 Washer, stainless steel
1 Adapter plate with long slot
Technical details
| Colour | silver |
|---|---|
| Diameter (mm) | 12.00 |
| Intrastat country of origin | Germany |
|---|---|
| Intrastat product number (HS-code) | 73089098 |
| Manufacturer | K2 Systems |
| Manufacturer item name | SolidRail HangerBolt M12x200 |
| Pal. dim. LxBxH (mm) | 1200x800x960 |
|---|---|
| Pal. weight (kg) | 489.40 |
| Height incl. packaging (cm) | 4.00 |
| Width incl. packaging (cm) | 9.00 |
| Amount per big Box | 75 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 0.272 |
| Length incl. packaging (cm) | 20.00 |
| Amount per Pallet | 1800 |
| Height without packaging (mm) | 40.00 |
|---|---|
| Width without packaging (mm) | 90.00 |
| Length without packaging (mm) | 200.00 |
| Weight without packaging (kg) | 0.258 |
