LUNA2000-25-S0 + SUN2000-25K-MB0

There is further growth in the storage sets with the Huawei Smart Energy Controllers, in particular with the large hybrid inverters. The new MB0 series seamlessly follows on from the small M1 series with power classes from 12 to 25 kW. Proven features such as integrated overvoltage protection, arc detection and compatibility with Huawei's own optimisers are of course included. There are also two separate battery connections, which enable suitable storage combinations in these power classes. The S0-LUNA high-voltage storage system doesn't do things by halves either. Quick and easy installation and retrofitting are possible at any time thanks to intelligent system control. In parallel operation with 2 towers, up to 30 kWh of usable storage capacity is available. In addition, up to 3 MB0 series systems can be cascaded.

Product advantages:

- Reliable compatibility due to standardised manufacturer

- High DC input current

- 2 battery connections *

- Integrated arc detection

- Compatible with all new Huawei optimisers *

Product features System:

- AC power: 25.0 kW

- Number of MPPT: 2

- DC rated current: 30 A per MPPT (20 A per string)

- Number of bat connections: 2

- Max charging power: 25.0 kW

- Compatible storage systems: LUNA2000 S0 + S1

- AC connection: 3-phase

- Overvoltage protection: AC + DC type 2

- Communication: RS485, Wifi / LAN (optional), 4G / 3G / 2G (optional), EMMA (optional, Q1/24)

- Protection class: IP66

- Cooling: active

- Dimensions: 460 x 546 x 228 mm (H x W x D)

- Weight: 21.0 kg

Product features Memory:

- Total battery capacity (usable): 25.0 kWh

- Time window extension: unlimited

- Cascadable: up to 2 towers in parallel (30.0 kWh)

- Cell chemistry: LFP

- Charging capacity: 2.5 (Luna 5) / 5.0 (Luna 10+15) kW

- Protection class: IP65

- Dimensions: 1320 x 670 x 150 mm (HxWxD)

                                   960 x 670 x 150 mm (HxWxD)

- Weight: 2 x BMS + base: 13.8 kg, 5 x storage tanks 50.0 kg each

*Compatible with

Optimiser: SUN2000-450W-P2, SUN2000-600W-P, MERC-110W-P, MERC-1300W-P

Memory: LUNA2000 S0 + S1

Conclusion:

Large sets for large tasks - this combination of MB0 inverter and up to 4 LUNA-S0 storage units provides plenty of power.

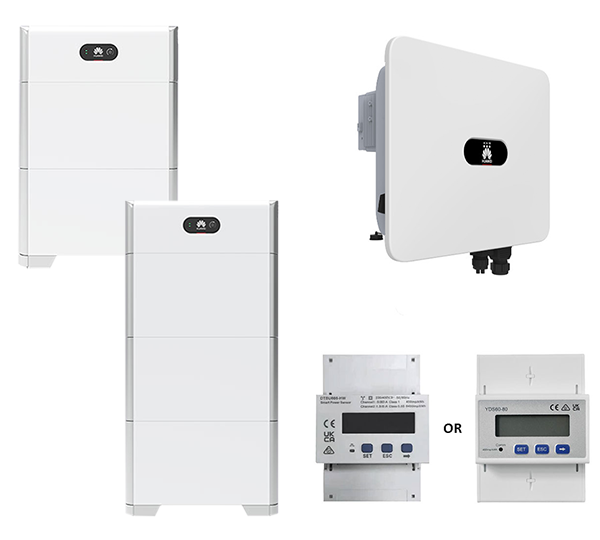

Set contains:

- 1 x Huawei SUN2000-25K-MB0 (article 0155257)

- 1 x Huawei Smart Power Sensor (article 0153213)

- 2 x Huawei LUNA2000-5kW-C0 Power Module BMU (article 0133894)

- 5 x Huawei LUNA2000-5-E0 Memory Module (article 0133893)
