X3-Hybrid 15.0-D G4.2 + dongle
Product information "X3-Hybrid 15.0-D G4.2 + dongle"

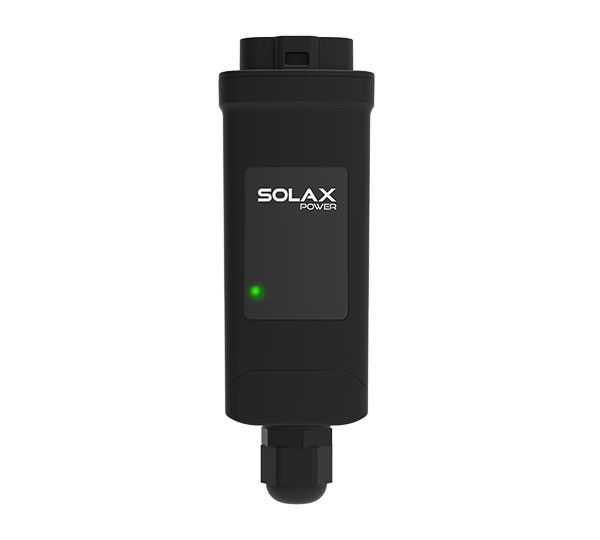

the Wifi/LAN dongle is now included in the scope of delivery of the X3 Hybrid
The hybrid inverters in the X3 series from Solax are available in power classes from 5 to 15 kW and can be used universally. The wide range of interfaces, functions and accessories form the basis for this. It can even be used as a genuine stand-alone system with a generator connection. Combined with one of the Solax storage series, there is a suitable set for every application.
Product advantages:
• Reliable compatibility through uniform manufacturer
• Emergency power with UPS function < 10ms
• High input current per MPPT
• Up to 5 systems can be cascaded
• Proven, ultra-flat stacking design
• Cascadable up to 4 battery modules
Product features:
• AC power: 15.0 kW
• Number of MPPT: 2
• DC input current: 28A MPPT 1 + 16A MPPT 2
• AC connection: 3-phase
• Communication: Wifi, LAN, RS485
• Protection class: IP65
• Cooling: active
• Dimensions: 503 x 503 x 199 mm (W x H x D)
• Weight: 30.0 kg
• Wifi/LAN dongle included in the scope of delivery
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Max. input current per MPPT (A). | 28,0\/16,0 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Arc Fault Circuit Interrupter | no |
| Min. temperature ambient (°C) | -35 |
| Max. input voltage DC (V) | 1000.00 |
| Battery Connection | DC |
| MPP max. voltage range input (V) | 950.00 |
| Max. AC power (kVA) | 15.00 |
| Decibel | 45 |
| Step-Up converter | yes |
| Charging current (A) | 30.00 |
| Max. short circuit current (A) total | 55.00 |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| MPP min. voltage range input (V) | 180.00 |
| Total number of string inputs | 3 |
| Max. input current DC (A) total | 44.00 |
| AC nominal power (kW) | 15.00 |
| Max. short circuit current per MPPT (A) | 35,0\/20,0 |
| Max. output current (A) | 24.10 |
| Charging voltage (V) | 180V-800V |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | X3-HYBRID-15.0-D |
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85044086 |
| Pal. dim. LxBxH (mm) | 650X1150x2100 |
|---|---|
| Height incl. packaging (cm) | 32.50 |
| Pal. weight (kg) | 457.00 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 36.100 |
| Width incl. packaging (cm) | 56.00 |
| Length incl. packaging (cm) | 62.50 |
| Amount per Pallet | 10 |
| Weight without packaging (kg) | 30.000 |
|---|---|
| Length without packaging (mm) | 503.00 |
| Height without packaging (mm) | 199.00 |
| Width without packaging (mm) | 503.00 |
| Standard product warranty (yr) | 10 |
|---|---|
| Warranty provider | SolaX Power |
| Product warranty (yr) | 10 |
