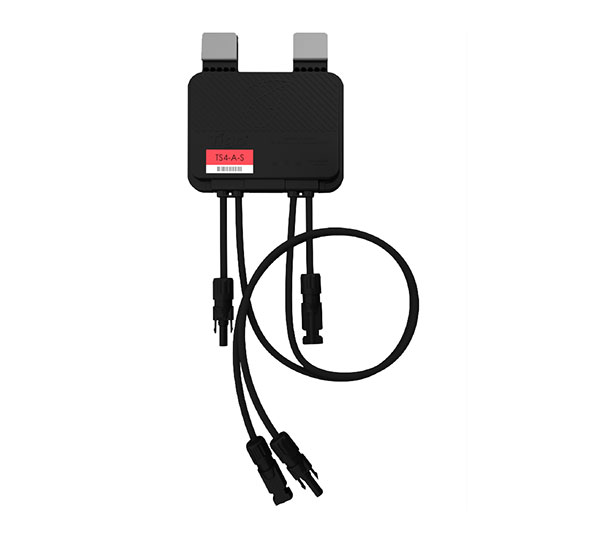

TS4-A-S UHD SAFETY RED 700W
Cable In: 0.12/ 0.62m, Out: 1.2/ 2.0m; MC4
Art-No.
0134284
Manufacturer No.
466-00252-32
Product details
Product information "TS4-A-S UHD SAFETY RED 700W"
Check the compatibility between module and inverter here.
The Tigo Energy power optimizer, equipped with an intelligent platform, ensures uncomplicated installation and long-term reliability. It makes a significant contribution to reducing system failures and maintenance work. The intelligent platform enables rapid on-site commissioning and comprehensive remote monitoring. It also offers modular monitoring and fast shutdown certified to UL standards. For monitoring, the Cloud Connect Advanced (CCA) with TAP from Tigo is also required, which enables monitoring, fast shutdown and remote correction. These tools facilitate efficient system control. An impressive 25-year warranty underlines the longevity and quality of the product.
Product advantages:
• Includes the benefits of Safety & Monitoring
• Monitoring, rapid shutdown and remote troubleshooting
• 25-year warranty
Product features:
• Rated input power: 700 W
• Short circuit current Isc: 15 A
• MPP max. voltage range input: 90 V
• MPP min. voltage range input: 16 V
• Max. input voltage DC: 90 V
• Interface: Funk
• DC connector type: MC4
• Length of cable output plus: 120 cm/ 200cm
• Weight: 0.490 kg
• Warranty: 25 years
Technical details
| DC connector type | MC4 |
|---|---|
| Max. input voltage DC (V) | 90.00 |
| Rated input power (W) | 700 |
| Short circuit current Isc (A) | 20.00 |
| Length of cable output minus (cm) | 120200.00 |
| MPP min. voltage range input (V) | 16.00 |
| Protection degree | IP68 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 90303370 |
| Manufacturer item name | TS4-A-S |
| Manufacturer | Tigo Energy |
| Height incl. packaging (cm) | 27.30 |
|---|---|
| Amount per Pallet | 1200 |
| Width incl. packaging (cm) | 37.00 |
| Pal. dim. LxBxH (mm) | 115x115x182 |
| Amount per big Box | 20 |
| Weight incl. packaging (Kg) | 0.800 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 33.30 |
| Height without packaging (mm) | 23.00 |
|---|---|
| Weight without packaging (kg) | 0.490 |
| Width without packaging (mm) | 138.00 |
| Length without packaging (mm) | 140.00 |
| Warranty provider | Tigo Energy |
|---|---|
| Product warranty (yr) | 25 |
| Standard product warranty (yr) | 25 |
