T-BAT HS 20.4 + X3-ULTRA-20K
Set
HV storage system, 18.3 kWh usable, 3-phase
Art-No.
0159298
Product details
Product information "T-BAT HS 20.4 + X3-ULTRA-20K"

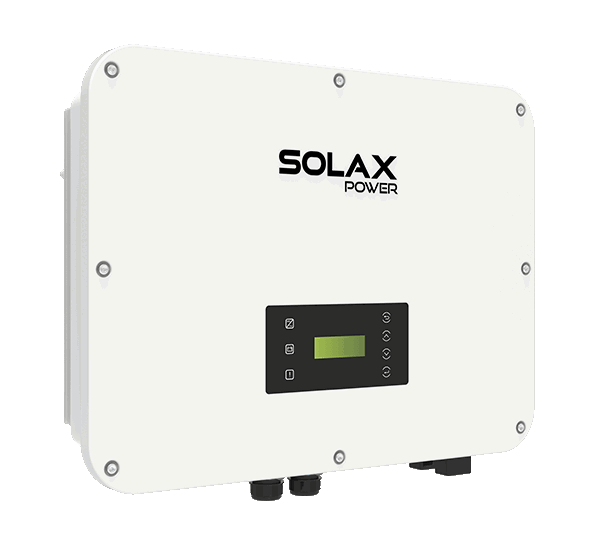

For XL home systems or XS commercial systems, Solax offers the X3-Ultra series. With power ratings from 15 to 30 kW, high DC input currents, and two independent battery connections, these high-voltage hybrids are a real statement. Integrated surge protection, AFCI arc detection, and interfaces for radio ripple control receivers and other devices leave little to be desired. Like the "small" X3 series, the Ultras can also be operated as true off-grid systems with a generator. The new HV-S 5.1 high-voltage storage series with up to 59.8 kWh of usable capacity is also available as a perfect complement. The two separate storage connections on the Ultra allow for up to 119.6 kWh.
Product advantages:
• Ideal for large residential and small commercial applications
• Emergency power with UPS function < 10 ms
• High input current per MPPT
• 2 independent battery connections
• Integrated AFCI arc detection
• Backup outputs can be cascaded
System product features:
• AC power: 20.0 kW
• Number of MPPTs: 2
• DC input current: 36 A per MPPT
• Battery connections: 2
• Max. storage charging current: 30 A each
• AC connection: 3-phase
• Communication: Wi-Fi, LAN (optional), RS485
• Interfaces: 5 x DI (FRE), 2 x DO
• Protection class: IP65
• Cooling: active
• Dimensions: 696 x 526 x 240 mm (W x H x D)
• Weight: 47.0 kg
Storage product features:
• Battery capacity (usable): 18.3 kWh
• Storage type: High-voltage
• Nominal voltage: 204.8 V
• Expansion time frame: unlimited
• Number of storage modules in one unit: 3 to 13
(from the 8th storage unit onwards, two towers with the Series Box must be set up)
• Cell chemistry: LFP
• Communication: RS485
• Cooling: passive
• Protection class: IP66
• Dimensions: 600 x 376 x 957 mm (L x W x H)
• Weight: BMS + base 18.5 kg, each storage module 46.0 kg
Conclusion:
If you simply need something bigger – no problem with the Solax Ultra hybrids including HV-S5.1 storage units.
Scope of delivery:
• 4 x Solax T-BAT SYS HV-S 5.1 storage modules (item 0159246)
• 1 x Solax T-BAT BMS TBSM-S51-8 + base (item 0159247)
• 1 x Solax 3-Phase Meter DTSU666-D (item 0128464)
• 1 x Solax hybrid inverter X3-ULTRA-20K (item 0155099)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 122.240 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
DTSU666-D Smart Meter0128464
-
X3-ULTRA-20K0155099
-
T-BAT BMS TBSM-S51-8 + Base0159247
-
T-BAT SYS HV-S 5.10159246
-
DTSU666-D Smart Meter0128464
-
X3-ULTRA-20K0155099
-
T-BAT BMS TBSM-S51-8 + Base0159247
-
T-BAT SYS HV-S 5.10159246
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 45 |
| Max. generator power DC (kWp) | 40.00 |
| Protection degree | IP66 |
| Max. short circuit current (A) total | 90.00 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Contact for self-consumption optimization (e.g. for heat pump) | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Max. nominal charging power (kW) | 6.14 |
| Surge protection AC | type 2 |
| Feed-in phases | 3 |
| Total number of string inputs | 4 |
| MPP max. voltage range input (V) | 950.00 |
| Capacity extendable later | yes without restriction |
| Commercial system | yes |
| Max. input current per MPPT (A). | 36 |
| Battery voltage | High Voltage |
| Max. efficiency (%) | 98.00 |
| AC nominal power (kW) | 20.00 |
| Max. input current DC (A) total | 72.00 |
| Battery cell chemistry | LFP |
| MPP min. voltage range input (V) | 160.00 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Max. AC power (kVA) | 22.00 |
| Surge protection DC | type 2 |
| Contact ripple control receiver | yes |
| Backup system light | yes |
| Max. output current (A) | 31.90 |
| Arc Fault Circuit Interrupter | yes |
| Usable capacity (kWh) | 18.30 |
| Max. discharging power (kW) | 6.14 |
| Amount connected phases | 3 |
| Backup system full | yes |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods Weight (net) (kg) | 122.240 |
| Dangerous goods class | 9 |
| Manufacturer item name | T-HS20.4*TBMS-S51*DTSU666-D*X3-ULTRA-20K |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 284.260 |
|---|
| Weight without packaging (kg) | 250.210 |
|---|
| Warranty provider | SolaX Power |
|---|
