T-BAT HS 20.4 + X3-Hybrid 15.0 G4 PRO + Dongle
Set
HV storage system, 18.3 kWh usable, 3-phase
Art-No.
0159297
Product details
Product information "T-BAT HS 20.4 + X3-Hybrid 15.0 G4 PRO + Dongle"
The WiFi/LAN dongle is now included in the scope of delivery of the X3-Hybrid Pro.

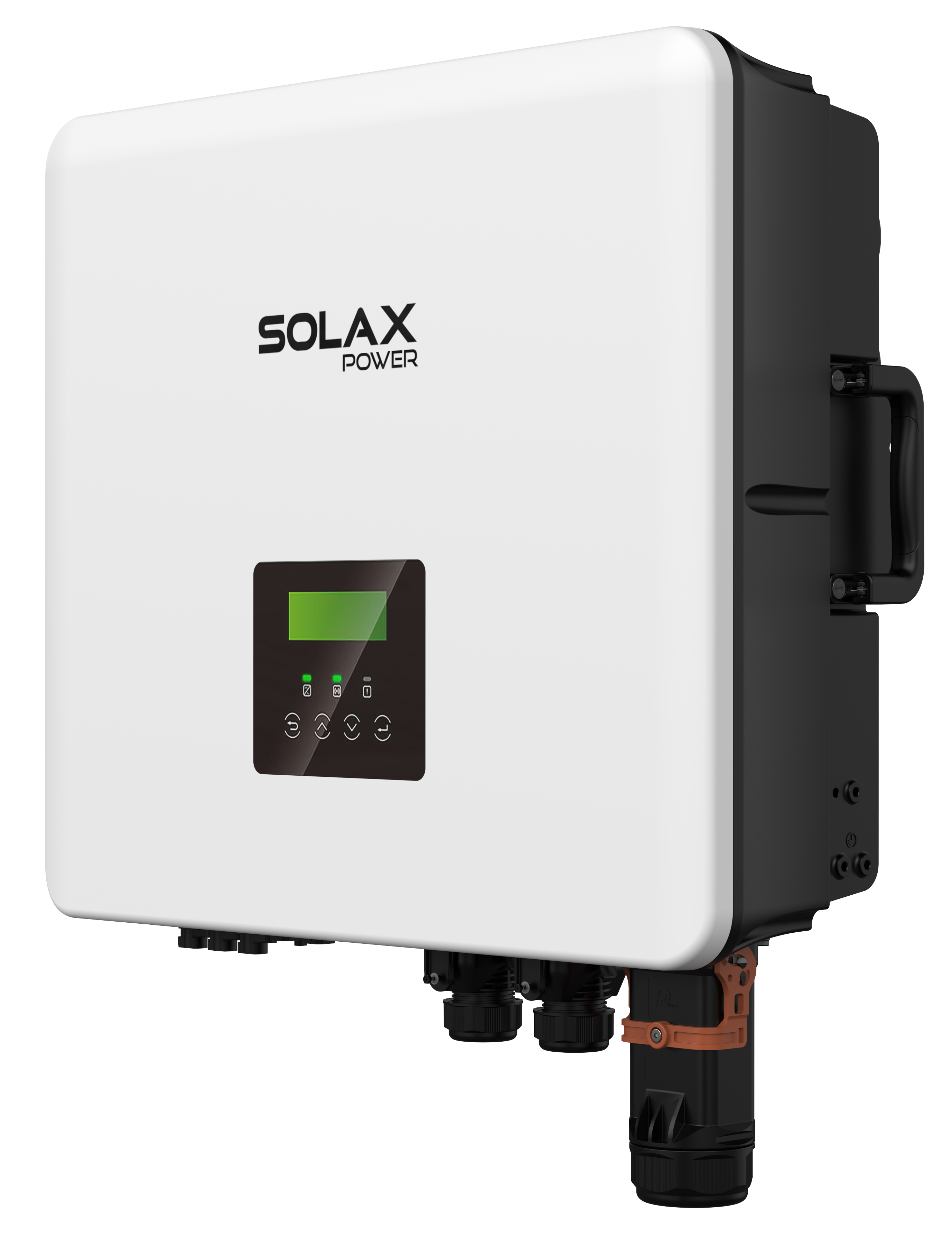

With the PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still permitted. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HV-S 5.1 storage series from Solax, there is a suitable set for every application.
Product advantages:
• Up to 3 independent MPPTs
• 20A input current per MPPT
• Intelligent AFCI arc detection
• 2 separate battery ports
• Up to 5 systems can be cascaded
• Up to 13 battery modules can be cascaded
System product features:
• AC power: 15.0 kW
• AC connection: 400V, 3-phase
• Number of MPPTs: 3
• DC input current: 20A per MPPT
• MPPT voltage range: 110 – 950 V
• Number of battery ports: 2
• DC charging current per battery: 25A each (using both ports), 30A (using one port), 50A (parallel operation)
• Communication: Wi-Fi, LAN
• Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapterbox G2, Wallbox, Datahub DI/DO
• Protection class: IP66
• Cooling: active
• Dimensions: approx. 503 x 503 x 199 mm (W x H x D)
• Weight: 38.0 kg
• Wi-Fi/LAN dongle included
Storage product features:
• Battery capacity (usable): 18.3 kWh
• Storage type: high-voltage
• Nominal voltage: 204.8 V
• Expansion time window: unlimited
• Number of storage modules in one unit: 3 to 13
(from the 8th storage unit, two towers can be set up with the Series Box)
• Cell chemistry: LFP
• Communication: RS485
• Cooling: passive
• Protection class: IP66
• Dimensions: 600 x 376 x 957 mm (L x W x H)
• Weight: BMS + base 18.5 kg, 46.0 kg per storage module
Conclusion:
Solax's ready-for-the-future statement. Practical and well-thought-out features of the new PRO hybrids, plus the HV-S 5.1 storage units with plenty of punch.
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 122.240 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
DTSU666-D Smart Meter0128464
-
T-BAT BMS TBSM-S51-8 + Base0159247
-
T-BAT SYS HV-S 5.10159246
-
X3-Hybrid 15.0 G4 PRO + Dongle0158960
-
DTSU666-D Smart Meter0128464
-
T-BAT BMS TBSM-S51-8 + Base0159247
-
T-BAT SYS HV-S 5.10159246
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Max. input current DC (A) total | 60.00 |
| Max. short circuit current per MPPT (A) | 25 |
| Backup system full | yes with supply |
| Protection degree | IP66 |
| Display | with display |
| Number of independent MPPT (pcs) | 3 |
| Max. output current (A) | 21.80 |
| Contact for self-consumption optimization (e.g. for heat pump) | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Max. nominal charging power (kW) | 6.14 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Feed-in phases | 3 |
| MPP max. voltage range input (V) | 950.00 |
| Capacity extendable later | yes with time restriction |
| Max. input current per MPPT (A). | 20 |
| Battery voltage | High Voltage |
| Max. efficiency (%) | 98.00 |
| Battery cell chemistry | LFP |
| Integrated DC switch | yes |
| MPP min. voltage range input (V) | 110.00 |
| Offgrid usable | yes |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 15.00 |
| Contact ripple control receiver | yes |
| Backup system light | yes |
| Max. short circuit current (A) total | 75.00 |
| Usable capacity (kWh) | 18.30 |
| Start input voltage (V) | 120 |
| Max. discharging power (kW) | 6.14 |
| Amount connected phases | 3 |
| Max. AC power (kVA) | 16.50 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods Weight (net) (kg) | 122.240 |
| Dangerous goods class | 9 |
| Manufacturer item name | T-HS20.4*TBMS-S51*DTSU666-D*X3-HYB-15.0-P |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 273.260 |
|---|
| Weight without packaging (kg) | 241.210 |
|---|
| Warranty provider | SolaX Power |
|---|
