T-BAT HS 20.4 + X3-Hybrid 12.0 G4 PRO + Dongle

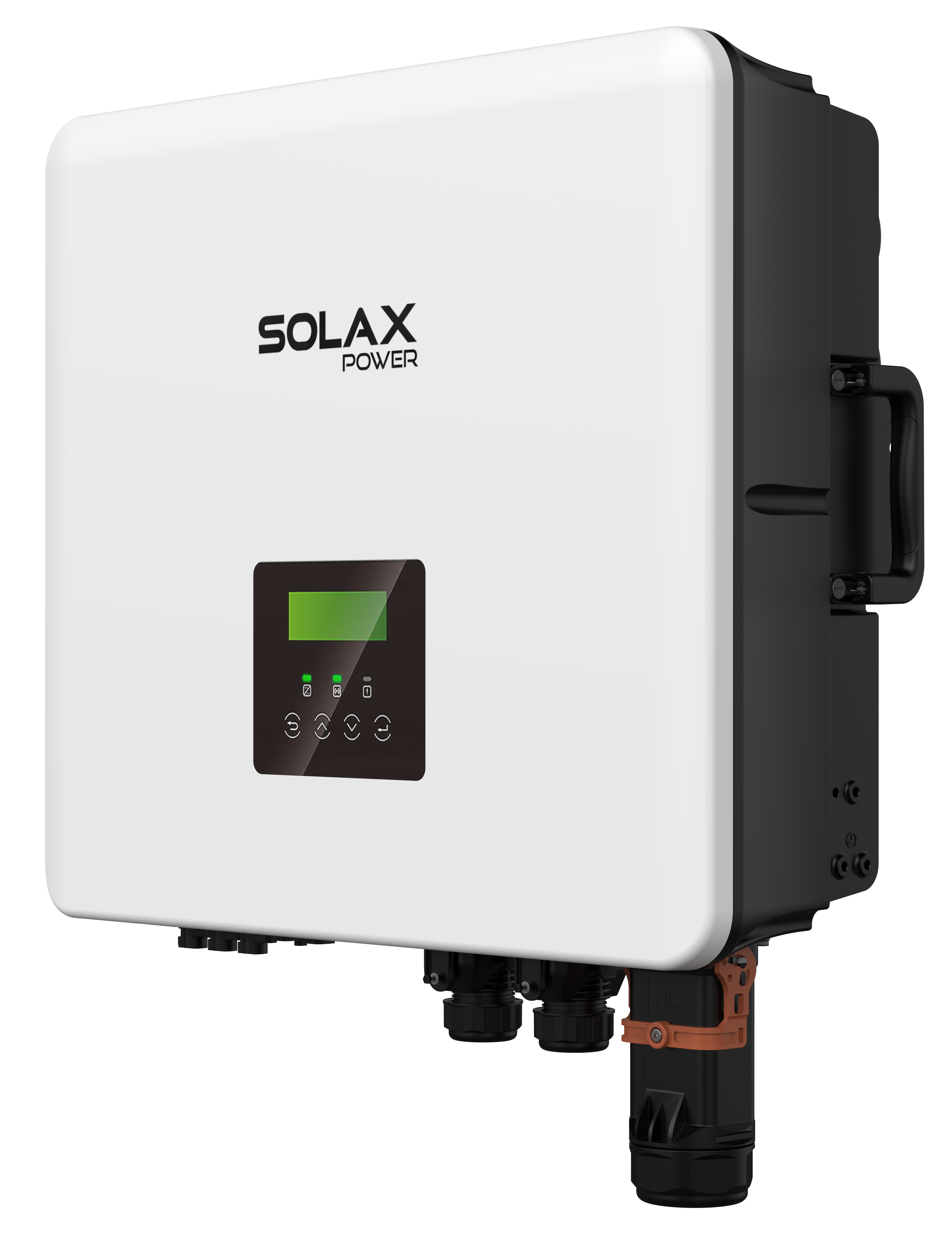

With the PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still permitted. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HV-S 5.1 storage series from Solax, there is a suitable set for every application.

Product advantages:

• Up to 3 independent MPPTs

• 20A input current per MPPT

• Intelligent AFCI arc detection

• 2 separate battery ports

• Up to 5 systems can be cascaded

• Up to 13 battery modules can be cascaded

System product features:

• AC power: 12.0 kW

• AC connection: 400V, 3-phase

• Number of MPPTs: 3

• DC input current: 20A per MPPT

• MPPT voltage range: 110 – 950 V

• Number of battery ports: 2

• DC charging current per battery: 25A each (using both ports), 30A (using one port), 50A (parallel operation)

• Communication: Wi-Fi, LAN

• Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapterbox G2, Wallbox, Datahub DI/DO

• Protection class: IP66

• Cooling: active

• Dimensions: approx. 503 x 503 x 199 mm (W x H x D)

• Weight: 38.0 kg

• Wi-Fi/LAN dongle included

Storage product features:

• Battery capacity (usable): 18.3 kWh

• Storage type: high-voltage

• Nominal voltage: 204.8 V

• Expansion time window: unlimited

• Number of storage modules in one unit: 3 to 13

(from the 8th storage unit, two towers can be set up with the Series Box)

• Cell chemistry: LFP

• Communication: RS485

• Cooling: passive

• Protection class: IP66

• Dimensions: 600 x 376 x 957 mm (L x W x H)

• Weight: BMS + base 18.5 kg, 46.0 kg per storage module

Conclusion:

Solax's ready-for-the-future statement. Practical and well-thought-out features of the new PRO hybrids, plus the HV-S 5.1 storage units with plenty of punch.
