T-BAT HS 15.0 + X3-ULTRA-30K

Solax offers the new X3-Ultra series for XL home systems or XS commercial systems. With performance classes from 15 to 30 kW, high DC input currents and 2 independent battery connections, the high-voltage hybrids are a real statement. Integrated surge protection, AFCI arc detection and interfaces for radio ripple control receivers etc. leave little to be desired. Like the “small” X3 series, the Ultras can also be operated as true off-grid systems with a generator. As a perfect addition, there are also the new HV-S high-voltage storage series with up to 43.1 kWh usable capacity. Thanks to the 2 separate storage connections on the Ultra, up to 86.2 kWh is possible. To optimize the charging performance, our sets of 8 or more storage modules are divided into both connections of the hybrid inverter.

Product advantages:

• Ideal for big-residential and small-commercial applications

• Emergency power with UPS function < 10ms

• High input current per MPPT

• 2 independent battery connections

• Integrated arc detection AFCI

• Backup outputs can be cascaded *

Product features system:

• AC power: 30.0 kW

• Number of MPPT: 3

• DC input current: 36A per MPPT

• Battery connections: 2

• Max. charging current storage: 30 A each

• AC connection: 3-phase

• Communication: Wifi, LAN (opt.), RS485

• Interfaces: 5 x DI (FRE), 2 x DO

• Protection class: IP65

• Cooling: active

• Dimensions: 696 x 526 x 240 mm (W x H x D)

• Weight: 47.0 kg

Product features memory:

• Battery capacity (usable): 13.80 (2.3 per module) kWh

• Time window extension: unlimited

• Cascadable: 2 to 13 battery modules (9 units or more become Solax Series

         box required)

• Cell chemistry: LFP

• Rated voltage: 51.2 V per memory module V

• Protection class: IP65

• Dimensions: 1048 x 510 x 365 mm (HxWxD)

• Weight: Battery 28.0 kg each, BMS 10.0 kg

*required accessories: X3-Ultra-EPS parallel box (currently only announced)

Conclusion:

If you just need to be bigger – no problem with the Solax Ultra hybrids including HS storage.

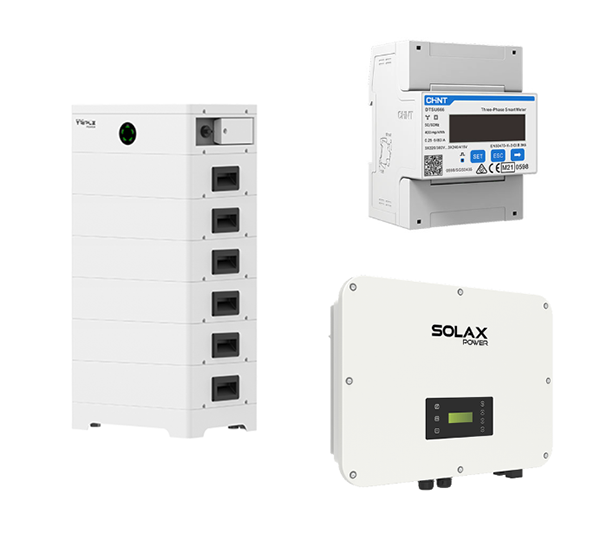

Scope of delivery:

• 1 x Solax X3-Ultra Hybrid 30K (item 0155101)

• 1 x Solax Meter DTSU666-D (item 0128464)

• 1 x Solax MCS0800 BCU + socket (item 0155372)

• 6 x Solax HV-S 2.5 memory module (item 0155103)
