T-BAT HS 10.0 + X3-Hybrid 6.0 D G4.2
Set
HV storage system, 9.2 kWh usable, 3-phase
Art-No.
0155720
Product details
Product information "T-BAT HS 10.0 + X3-Hybrid 6.0 D G4.2"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
In this storage package, we combine Solax's proven X3 hybrids with power classes from 5 to 15 kW and the new HV-S 2.5 storage series. This can be cascaded with up to 13 storage modules per tower for a usable capacity of 29.9 kWh. Fast, wireless stacking with no time limit for expansion creates the best conditions and maximum flexibility. It's also ideal for special applications as a true off-grid system with generator connection.
Product advantages:
• Reliable compatibility thanks to a single manufacturer
• Emergency power with UPS function < 10 ms
• High input current per MPPT
• Up to 10 systems can be cascaded
• Proven, ultra-flat stacking design
• Up to 13 battery modules can be cascaded
• Updates and diagnostics via the inverter
System product features:
• AC power: 6.0 kW
• Number of MPPTs: 2
• DC input current: 16 A per MPPT
• AC connection: 3-phase
• Communication: Wi-Fi, LAN (optional), RS485
• Protection class: IP65
• Cooling: passive
• Dimensions: 503 x 503 x 199 mm (W x H x D)
• Weight: 30.0 kg
Storage product features:
• Battery capacity (usable): 9.2 kWh
• Expansion time window: unlimited
• Cascadable: 2 to 13 Battery modules (Solax Series Box required for 9 or more units)
• Cell chemistry: LFP
• Nominal voltage: 204.8 V
• Protection class: IP65
• Dimensions: 773 x 510 x 365 mm (HxWxD)
• Weight: Battery 28.0 kg each, BMS 10.0 kg
Conclusion:
With a wide performance range and new, ultra-flexible storage sizes, there's a suitable package for every application.
Scope of delivery:
• 4 x Solax T-BAT-SYS-HV-S2.5 storage modules (item 0155103)
• 1 x Solax MCS0800 Master Box + Base (item 0155372)
• 1 x Solax 3-Phase Smart Meter DTSU666-D (item 0128464)

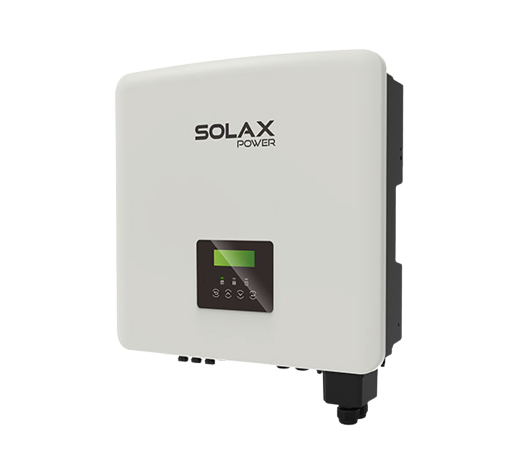

• 1 x Solax X3-HYBRID-6.0-D G4.2 hybrid inverter (item 0151785)
Wichtige technische Daten
| Dangerous goods Weight (net) (kg) | 112.000 |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
DTSU666-D Smart Meter0128464
-
Master Box MCS0800 + base0155372
-
X3-HYBRID-6.0-D G4.20151785
-
T-BAT-SYS-HV-S2.50155103
-
DTSU666-D Smart Meter0128464
-
X3-HYBRID-6.0-D G4.20151785
-
T-BAT-SYS-HV-S2.50155103
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 20 |
| Max. generator power DC (kWp) | 12.00 |
| Max. input current per MPPT (A). | 16 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. short circuit current (A) total | 40.00 |
| Total number of string inputs | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Commercial system | no |
| Max. AC power (kVA) | 6.60 |
| MPP max. voltage range input (V) | 950.00 |
| Max. nominal charging power (kW) | 6.10 |
| Battery voltage | High Voltage |
| Max. efficiency (%) | 98.00 |
| MPP min. voltage range input (V) | 180.00 |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 9.20 |
| Max. discharging power (kW) | 6.10 |
| Max. output current (A) | 9.70 |
| Amount connected phases | 3 |
| AC nominal power (kW) | 6.00 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods Weight (net) (kg) | 112.000 |
| Dangerous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Manufacturer item name | T-BAT-SYS-HV-S2.5*MCS0800*X3-HYBRID-6.0-D |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 187.460 |
|---|
| Weight without packaging (kg) | 152.710 |
|---|
| Warranty provider | SolaX Power |
|---|
