Sungrow SBR096 V13.2 + SH6.0RT-V112
Set
HV storage system, 9.6 kWh usable, 3-phase
Art-No.
0162861
Product details
Product information "Sungrow SBR096 V13.2 + SH6.0RT-V112"
This proven complete package from Sungrow is versatile and flexible. The hybrid inverter comes fully equipped, including Type 2 surge protection for both the module and grid sides, as well as interfaces for Wi-Fi, network, and FRE (Free Range). With an input current of up to 13.5 A per tracker, even the latest module series are no problem. The high-voltage storage system, with its space-saving stackable design, can be expanded up to 25.6 kWh without any time limit.
Product advantages:
• Up to 13.5 A input current per MPPT
• Storage capacity expandable without time limit
• WiNet dongle and smart meter included
System product specifications:
• AC rated power: 6.0 kW
• Feed-in phases: 3
• AC mains voltage: 400 V
• Number of MPP trackers: 2
• Max. DC input voltage: 1000 V
• DC input current: 12.5 A per MPPT
• DC surge protection: Type 2
• AC surge protection: Type 2
• DC connector type: PV – Stäubli MC4, Storage – Sunclix
• Interfaces: Wi-Fi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO
• Protection class: IP65
• Cooling: passive
• Dimensions: 540 x 470 x 170 mm (L x W x H)
• Weight: 27.0 kg
Storage system product specifications:
• Battery capacity (usable): 9.6 kWh
• Storage type: High voltage
• Nominal voltage: 192 V
• Expansion timeframe: Unlimited
• Number of storage modules in one unit: 2 to 8
• Cell chemistry: LFP
• Communication: CAN
• Cooling: Passive
• Protection class: IP55
• Dimensions: 545 x 625 x 330 mm (H x W x D)
• Weight: BCU 15.0 kg, 3 x storage modules 33.0 kg each
Conclusion:
Everything included, ready to use, flexible in its application and expandability.
Scope of delivery:

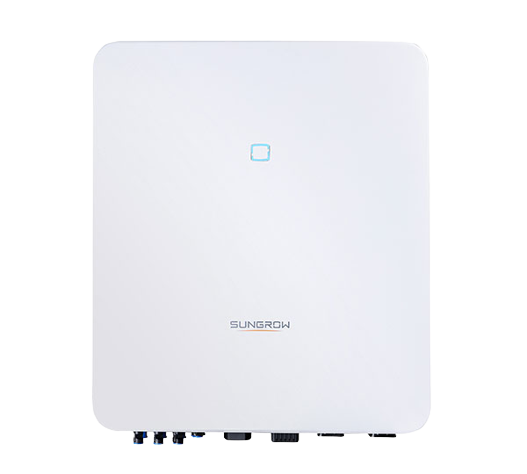

• 1 x Sungrow SH6.0RT-V112 hybrid inverter, including WiNet dongle and meter (item 0162858)
• 1 x Sungrow SBR Battery Accessory Set System (item 0162716)
• 3 x Sungrow SBR V13.2 storage modules (item 0162715)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 99.000 |
| UN No. | 3480 |
Downloads
-
SBR Battery Premium Accessories0162716
-
SBR Battery Module Premium 3,2 kWh V13.20162715
-
SH6.0RT-V1120162858
-
SBR Battery Premium Accessories0162716
-
SBR Battery Module Premium 3,2 kWh V13.20162715
-
SH6.0RT-V1120162858
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current (A) total | 32.00 |
| Start input voltage (V) | 250 |
| Max. discharging power (kW) | 5.76 |
| Max. input current per MPPT (A). | 12,5 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Max. generator power DC (kWp) | 9.00 |
| Decibel | 30 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. output current (A) | 9.10 |
| Max. AC power (kVA) | 6.00 |
| European efficiency (%) | 97.50 |
| MPP max. voltage range input (V) | 950.00 |
| Capacity extendable later | yes without restriction |
| Display | w/o display |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 9.60 |
| Max. efficiency (%) | 98.20 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Protection degree | IP55 |
| Max. nominal charging power (kW) | 5.76 |
| Surge protection DC | type 2 |
| Max. short circuit current per MPPT (A) | 16,0 |
| Max. input current DC (A) total | 25.00 |
| DC connector type | MC4 connectable |
| Amount connected phases | 3 |
| AC nominal power (kW) | 6.00 |
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | Sungrow |
| Dangerous goods class | 9 |
| Manufacturer item name | SBR096 V13.2*SH6.0RT-V112 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 99.000 |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 166.000 |
|---|
| Weight without packaging (kg) | 141.000 |
|---|
