Sungrow SBR096 V13.2 + SH10.0RT-20-V11
Set
HV storage system, 9.6 kWh usable, 3-phase
Art-No.
0162721
Product details
Product information "Sungrow SBR096 V13.2 + SH10.0RT-20-V11"
This complete package from Sungrow includes the latest versions of the SH Hybrid series and the SBR high-voltage storage system. In addition to increasing the DC input current for current modules, the Sungrow EV charger can finally be combined with it again. The previous difficulties with the different versions of the SBR storage system have also been finally resolved with the new V13.2. Ready, set, Sungrow.
Product advantages:
• Suitable for high-performance modules
• Compatible with the Sungrow EV Charger
• Storage can be expanded indefinitely
• Up to 5 systems in parallel operation
• Battery safety certified according to 2510-50
System product features:
• AC power: 10.0 kW
• Number of MPPTs: 2
• DC input current: 27.0 A (MPPT 2)
• AC connection: 400 V, 3-phase
• Communication: WiFi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO (WP)
• Protection class: IP65
• Cooling: passive
• Dimensions: 540 x 470 x 170 mm (L x W x H)
• Weight: 27.0 kg
• Warranty: 10 years
• Includes WiNet dongle and smart meter
Storage product features:
• Battery capacity (usable): 9.6 kWh
• Time window for expansion: Unlimited
• Cell chemistry: LFP
• Nominal voltage: 192 V
• Protection class: IP55
• Dimensions: 545 x 625 x 330 mm (HxWxD)
• Weight: BCU 15.0 kg, 3 x storage units 33.0 kg each
Conclusion:
Everything included, ready-made, flexible to use and expand.
Scope of delivery:
• 1 x Sungrow SH10.0RT-20-V11 Hybrid Inverter, including WiNet dongle and meter (item 0162713)
• 1 x Sungrow SBR Battery Accessory Set System (item 0162716)
• 3 x Sungrow SBR V13.2 storage modules (item 0162715)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 99.000 |
| UN No. | 3480 |
Downloads
-

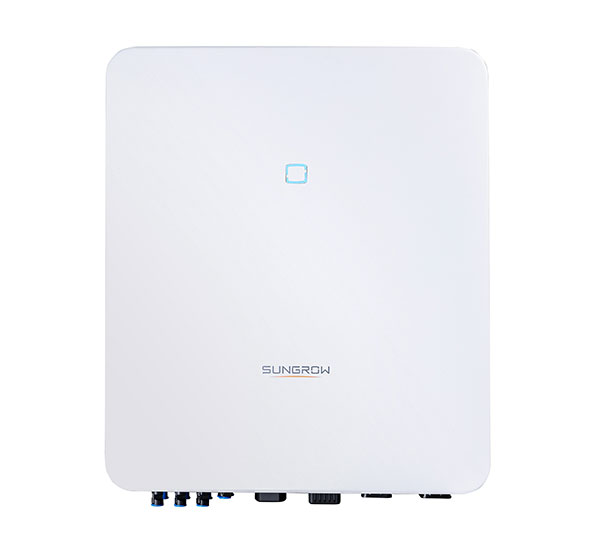

SH10.0RT-20-V110162713
-

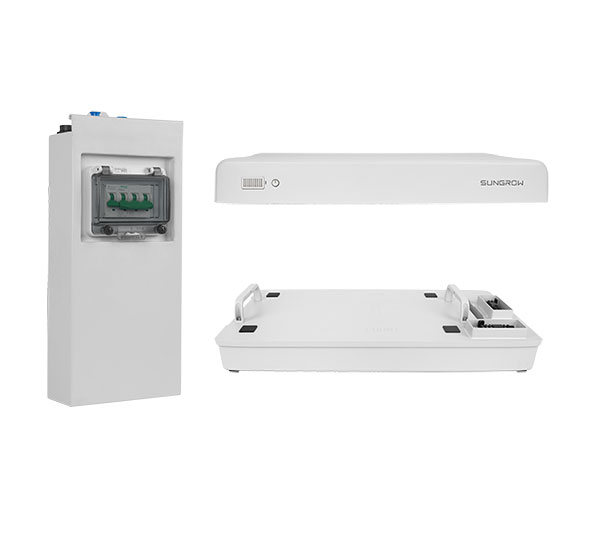

SBR Battery Premium Accessories0162716
-

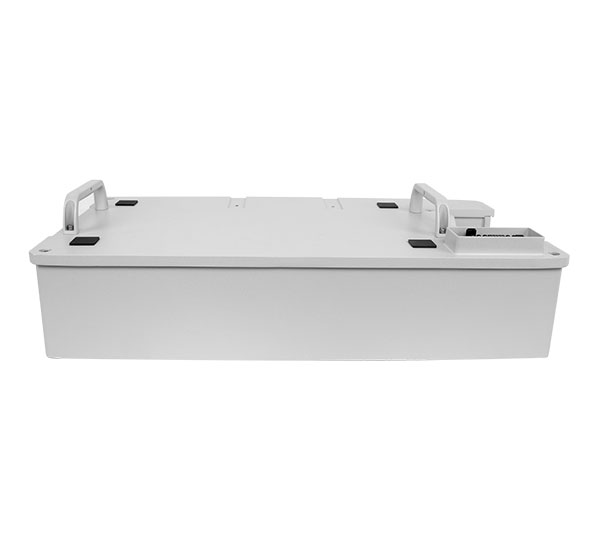

SBR Battery Module Premium 3,2 kWh V13.20162715
-
SH10.0RT-20-V110162713
-
SBR Battery Premium Accessories0162716
-
SBR Battery Module Premium 3,2 kWh V13.20162715
Technical details
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 250 |
| Max. discharging power (kW) | 5.76 |
| Max. input current per MPPT (A). | 27,0\/13,5 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| Max. output current (A) | 15.20 |
| Max. short circuit current (A) total | 54.00 |
| Decibel | 30 |
| Max. input current DC (A) total | 40.50 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. AC power (kVA) | 10.00 |
| MPP max. voltage range input (V) | 950.00 |
| Capacity extendable later | yes without restriction |
| European efficiency (%) | 97.90 |
| Display | w/o display |
| Max. generator power DC (kWp) | 15.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 9.60 |
| Max. efficiency (%) | 98.40 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Protection degree | IP55 |
| Total number of string inputs | 3 |
| Max. nominal charging power (kW) | 5.76 |
| Surge protection DC | type 2 |
| DC connector type | MC4 connectable |
| Amount connected phases | 3 |
| Max. short circuit current per MPPT (A) | 36,0\/18,0 |
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Manufacturer item name | SBR096 V13.2*SH10.0RT-20-V11 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | Sungrow |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 99.000 |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 166.000 |
|---|
| Weight without packaging (kg) | 141.000 |
|---|
