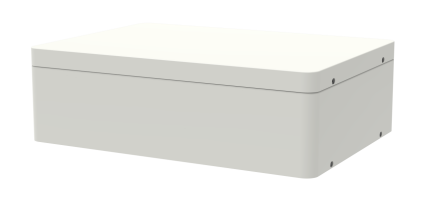

Series Box 5.1 + Base
SYS-HS, connection for towers > 8 memory modules
Art-No.
0159248
Manufacturer No.
106046000400
Product details
Product information "Series Box 5.1 + Base"
The HV-S 5.1 from Solax is the latest addition to the T-BAT-HS high-voltage storage series. With a usable capacity of 4.5 kWh each and up to 13 storage modules, a total of up to 59.8 kWh is possible. For configurations with more than 8 storage modules, the Solax Series Box 5.1 can be used to construct two towers.
Product features:
• Component type: Connection unit for configurations with more than 8 storage modules
• Scope of delivery: Series Box 5.1 + base
• Protection class: IP66
• Dimensions: Series Box 600 x 376 x 225 mm, base 600 x 376 x 60 mm (L x W x H)
• Weight: Series Box 15.0 kg, base approx. 5.5 kg
Compatible with:
• T-BAT-SYS-HV-S5.1
Technical details
| Protection degree | IP66 |
|---|---|
| Battery voltage | High Voltage |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Manufacturer item name | SERIES BOX TB-HS51 |
| Intrastat product number (HS-code) | 85371091 |
| Amount per Pallet | 12 |
|---|---|
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 26.600 |
| Amount per big Box | 1 |
| Weight without packaging (kg) | 15.000 |
|---|---|
| Height without packaging (mm) | 225.00 |
| Length without packaging (mm) | 600.00 |
| Width without packaging (mm) | 376.00 |
| Product warranty (yr) | 2 |
|---|---|
| Standard product warranty (yr) | 2 |
| Warranty provider | SolaX Power |
