SYMO 6.0-3-M

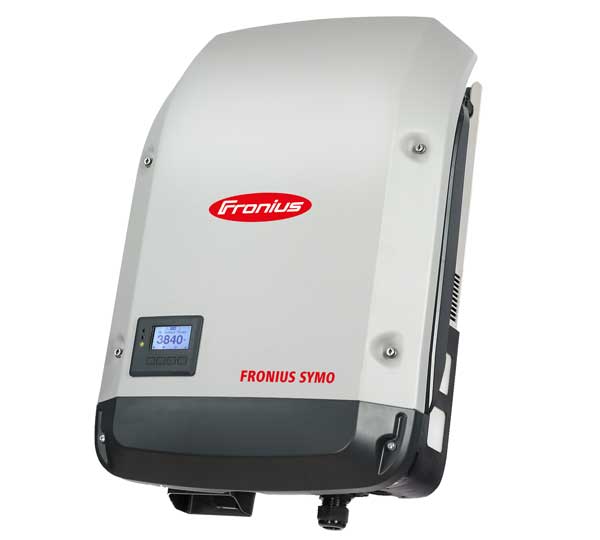

string inverter Fronius SYMO 6.0-3-M
Art-No.
0121536
Manufacturer No.
4,210,040
Product details
Product information "SYMO 6.0-3-M"
Only approved for Germany
with WLAN, LAN and web server
When the unit is registered within 30 months of the warranty can be extended by 3 years (total 5 years, "Fronius warranty plus", transfer of the cost of material performance, service and transport).
Technical details
| Topology | transformerless |
|---|---|
| Min. voltage range input (V) | 150 |
| Max. generator power DC (kWp) | 12.00 |
| MPP min. voltage range input (V) | 150.00 |
| Interface 2 | W-Lan |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Arc Fault Circuit Interrupter | no |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Feed-in phases | 3 |
| Max. AC power (kVA) | 6.00 |
| Interface 1 | Ethernet |
| Total number of string inputs | 4 |
| European efficiency (%) | 97.50 |
| Max. output current (A) | 8.70 |
| Step-Up converter | yes |
| DC connector type | screw-type terminal |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| Max. short circuit current (A) total | 48.00 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Max. short circuit current per MPPT (A) | 24,0 |
| AC nominal power (kW) | 6.00 |
| Max. input current per MPPT (A). | 16,0 |
| Manufacturer item name | Symo 6.0-3-M |
|---|---|
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. dim. LxBxH (mm) | 1200x800x1850 |
|---|---|
| Height incl. packaging (cm) | 29.00 |
| Width incl. packaging (cm) | 55.00 |
| Length incl. packaging (cm) | 78.00 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 326.00 |
| Weight incl. packaging (Kg) | 23.050 |
| Height without packaging (mm) | 204.00 |
|---|---|
| Length without packaging (mm) | 645.00 |
| Weight without packaging (kg) | 19.900 |
| Width without packaging (mm) | 431.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 |
