SOL-SC-1ST-0-DC-3MPPT-2001
string combiner 3x1 string, SPD Type II
Art-No.
0111050
Manufacturer No.
2403336
Product details
Product information "SOL-SC-1ST-0-DC-3MPPT-2001"

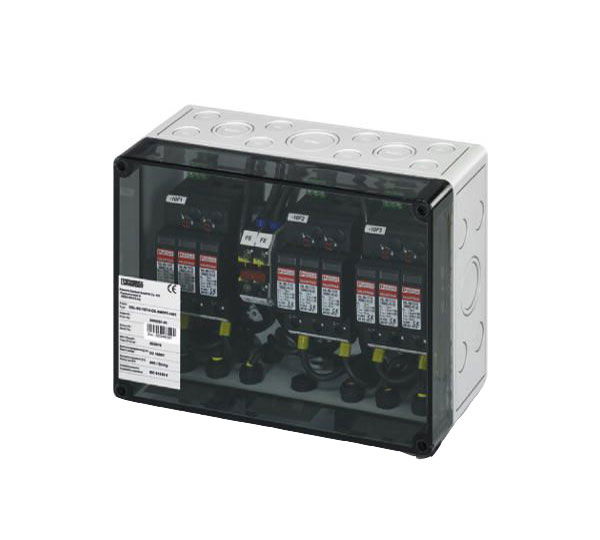

Generator junction box for photovoltaic systems up to 1000 V DC for connection of 3x 1 string. With surge protection and SUNCLIX DC connectors for the input and output side. Mating connector and coupling are included.
Technical details
| Protection degree | IP65 |
|---|---|
| Number of independent MPPT (pcs) | 3 |
| Max. input voltage DC (V) | 1000.00 |
| Min. temperature ambient (°C) | -20 |
| Surge protection DC | type 2 |
| DC connector type | SUNCLIX |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | Phoenix Contact |
| Intrastat product number (HS-code) | 85363030 |
| Manufacturer item name | SOL-SC-1ST-0-DC-3MPPT-2001 |
| Height incl. packaging (cm) | 14.00 |
|---|---|
| Width incl. packaging (cm) | 26.00 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 2.920 |
| Amount per big Box | 1 |
| Length incl. packaging (cm) | 30.00 |
| Weight without packaging (kg) | 2.920 |
|---|---|
| Height without packaging (mm) | 111.00 |
| Length without packaging (mm) | 254.00 |
| Width without packaging (mm) | 180.00 |
