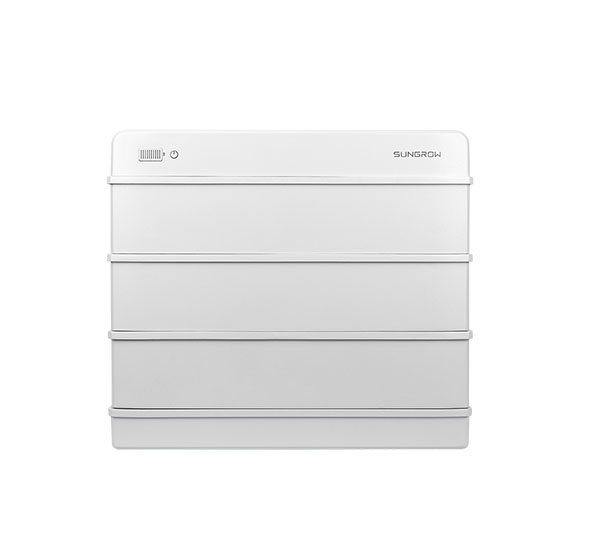

SBR064
Set
HV storage, 6.4 kWh usable
Art-No.
0156289
Product details
Product information "SBR064"
Please note the manufacturer approvals regarding compatibility with the inverter.
Due to the inverter firmware, the SBR064 can only be used in Austria with the SHXXRT 20 series.
The new V13.2 battery modules are universally compatible with all previous versions*. All proven features such as unlimited expandability, quick and easy installation thanks to the stacking concept and certified battery safety according to VDE 2510-50 remain at the start. With the Storage Connection Box from Sungrow, which will soon be available, up to 4 storage towers will also be able to be connected in parallel. Ready, set – Sungrow.
Product advantages:
• Compatible with all previous battery versions*
• Can be expanded indefinitely
• 2510-50 certified battery safety
Product features:
• Battery capacity (usable): 6.4 kWh
• Time window extension: unlimited
• Cell chemistry: LFP
• Rated voltage: 128V
• Protection class: IP55
• Dimensions: 545 x 625 x 330 mm (HxWxD)
• Weight: BCU 15.0 kg, 2 x storage 33.0 kg each
Scope of delivery:
• 1 x Sungrow SBR Battery accessory, BCU and empty housing (item
0154108)
• 2 x Sungrow SBR V13.2 battery module (item 0154571)
Taking into account the manufacturer's specifications regarding production date, SOC and firmware version.
The version with 6.4 kWh and two storage modules is supplemented with an empty housing for structural reasons. Due to the low system voltage, the release to the inverter must be checked.
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 155.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
SBR Battery Module Premium 3,2 kWh V13.20154571
-
Empty housing stor.mod. including BMS+accessories0154108
-
SBR Battery Module Premium 3,2 kWh V13.20154571
-
Empty housing stor.mod. including BMS+accessories0154108
Technical details
| Capacity extendable later | yes without restriction |
|---|---|
| Max. output current charging (A) | 30.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Protection degree | IP55 |
| Usable capacity (kWh) | 6.40 |
| Max. output current discharging (A) | 30.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer item name | SBR V13.2*SBR064 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | Sungrow |
| Dangerous goods Weight (net) (kg) | 155.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 180.000 |
|---|
| Weight without packaging (kg) | 155.000 |
|---|
| Warranty provider | Sungrow |
|---|
