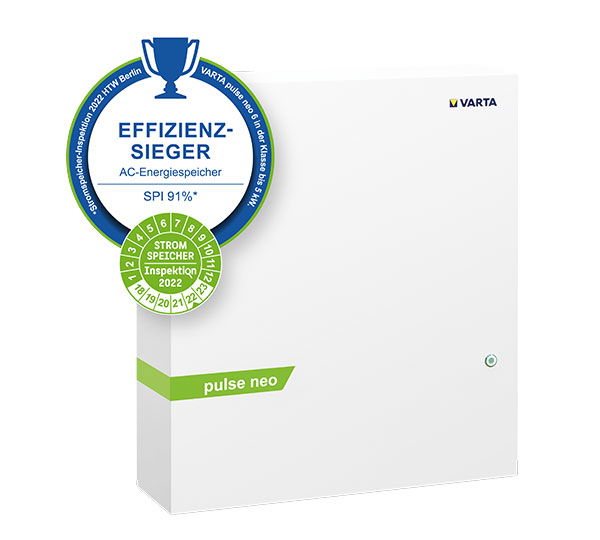

PULSE NEO 6
Product information "PULSE NEO 6"
Energy storage AC coupling for new and existing plants.
System data:
Complete system including battery module nominally 1x 6.5 kWh
Battery, lithium nickel manganese cobalt oxide (NMC), depth of discharge 90%;
Safety, multi-level, hardware and software redundant cell monitoring
Max. AC power charge / discharge 2.5 / 2.3 kW; integrated 1-phase battery inverter and power electronics
Protection class IP33, mains connection 230 V AC, 1-phase phase balanced, 50 Hz (TN and TT mains)
Cooling: temperature dependent fan control
Noise emission typical/max.: 44 dBA / 52 dBA
Installation inside the house, ambient temperature +5 degrees to +30 degrees
System warranty: 10 years (permanent internet connection), 5 years (without internet connection)
Battery cell warranty: Warranty: 10 years or 4,000 cycles (remaining capacity 80%, see manufacturer's warranty for details).
Features:
Energy management system VS-XMS, power recording via current sensor (included)
Visualization of production data and dynamic active power limitation via Sunspec
Compatibility list available at www.varta-storage.com/sunspec-compatibility.pdf
Master cascading of up to 6 energy storage systems of different types
Visualization via VARTA Storage App for Android and iOS, web portal and local web server.
Hardware interfaces: RJ45 (Ethernet), 2x RJ12 (current sensor and PV sensor).
Smart Home interfaces: XML, Modbus TCP, Sunspec
Charging station interaction: Surplus charging, home storage support
External relay control: Rutenbeck TCR IP 4, Shelly, FRITZ!DECT
Certifications and directives:
CE conformity, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, UN 38.3, DIN EN 62109-1:2011, V
DE-AR-N 4105:2018-11, TOR producer type A V1.1, NA-EEA-CH
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 65.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Topology | transformerless |
|---|---|
| Protection degree | IP33 |
| Max. nominal charging power (kW) | 2.50 |
| Battery cell chemistry | NMC |
| Backup system full | no |
| Min. temperature ambient (°C) | 5 |
| Decibel | 52 |
| Charging power (kW) | 2.50 |
| Commercial system | no |
| Display | w/o display |
| Usable capacity (kWh) | 5.90 |
| Max. discharging power (kW) | 2.30 |
| AC nominal power (kW) | 2.50 |
| Discharging power (kW) | 2.30 |
| Battery voltage | Low Voltage |
| Amount connected phases | 1 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | VARTA |
| Dangerous goods transportation category | 2 |
| Manufacturer item name | VARTA pulse neo 6 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 65.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 100.000 |
|---|
| Height without packaging (mm) | 690.00 |
|---|---|
| Width without packaging (mm) | 600.00 |
| Length without packaging (mm) | 186.00 |
| Weight without packaging (kg) | 65.000 |
| Warranty provider | VARTA |
|---|
