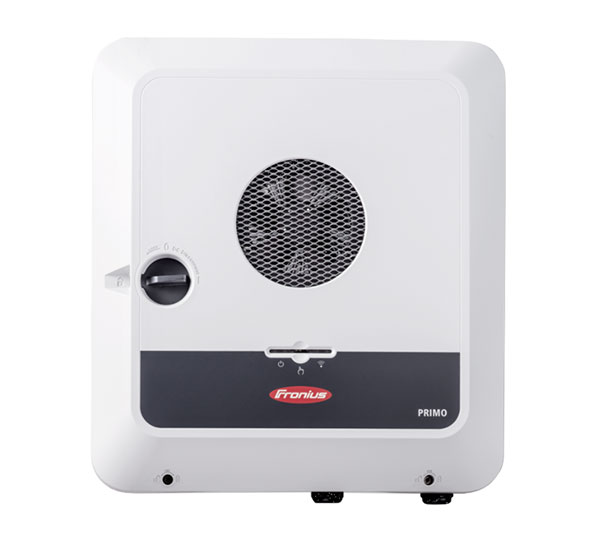

PRIMO GEN24 5.0
PV inverter, 2 MPPT, 1-phase, battery optional
Art-No.
0144712
Manufacturer No.
4,210,144
Product details
Product information "PRIMO GEN24 5.0"
Not usable in DE.
The hybrid function can be purchased for a fee using an activation code from Fronius Online.
This product requires an internet connection.
Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. As of now, the Primo and Symo series are available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, they will continue to receive the familiar version with already enabled battery port - distinguishable by the "plus" after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain proven good.
Product advantages:
• Storage connection can be activated at any time
• Emergency power via Fronius PV-Point always active
Product features:
• AC power: 5.0* kW
• Number of MPPT: 2
• DC input current: MPPT 1 - 22.0 A, MPPT 2 - 12.0 A
• AC connection: 1-phase
• Communication: WLAN, 2 x Ethernet
• Interfaces: 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 530 x 474 x 165 mm (H x W x D)
• Weight: 15.4 kg
This power class cannot be throttled down to 4.6 kVA according to VDE-AR-N 4105 and must therefore not be installed in Germany.
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 36,0\/19,0 |
| Max. input current per MPPT (A). | 22,0\/12,0 |
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -40 |
| European efficiency (%) | 97.20 |
| Backup system full | yes with supply |
| Backup system light | no |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 34.00 |
| Decibel | 42 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| AC nominal power (kW) | 5.00 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Display | w/o display |
| Max. short circuit current (A) total | 55.00 |
| MPP max. voltage range input (V) | 530.00 |
| Max. efficiency (%) | 97.60 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Contact ripple control receiver | yes |
| Max. AC power (kVA) | 5.00 |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Max. generator power DC (kWp) | 7.50 |
| MPP min. voltage range input (V) | 65.00 |
| Charging voltage (V) | 150V-455V |
| Min. voltage range input (V) | 65 |
| Charging current (A) | 22.00 |
| Max. output current (A) | 22.70 |
| Intrastat product number (HS-code) | 85044085 |
|---|---|
| Manufacturer item name | Primo GEN24 5.0 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Amount per Pallet | 16 |
|---|---|
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 53.00 |
| Width incl. packaging (cm) | 48.00 |
| Weight incl. packaging (Kg) | 19.000 |
| Height incl. packaging (cm) | 17.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Length without packaging (mm) | 530.00 |
|---|---|
| Weight without packaging (kg) | 15.400 |
| Height without packaging (mm) | 165.00 |
| Width without packaging (mm) | 474.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 |
