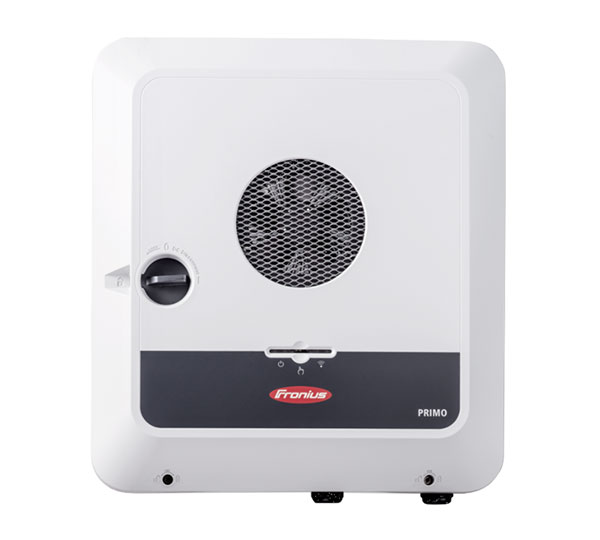

PRIMO GEN24 4.0
PV inverter, 2 MPPT, 1-phase, battery optional
Art-No.
0144710
Manufacturer No.
4,210,142
Product details
Product information "PRIMO GEN24 4.0"
The hybrid function can be purchased for a fee using an activation code from Fronius Online.
An internet connection is required for this product.
Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. As of now, the Primo and Symo series are available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, they will continue to receive the familiar version with already enabled battery port - distinguishable by the "plus" after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain proven good.
Product advantages:
• Storage connection can be activated at any time
• Emergency power via Fronius PV-Point always active
Product features:
• AC power: 4.0 kW
• Number of MPPT: 2
• DC input current: MPPT 1 - 22.0 A, MPPT 2 - 12.0 A
• AC connection: 1-phase
• Communication: WLAN, 2 x Ethernet
• Interfaces: 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 530 x 474 x 165 mm (H x W x D)
• Weight: 15.4 kg
Fronius inverters come with a standard 2-year warranty.
The warranty period can be extended to up to 10 years free of charge by registering at www.solarweb.com!
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 36,0\/19,0 |
| Max. input current per MPPT (A). | 22,0\/12,0 |
| Max. generator power DC (kWp) | 6.00 |
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -40 |
| Backup system full | yes with supply |
| Backup system light | no |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 4.00 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 34.00 |
| Max. AC power (kVA) | 4.00 |
| Decibel | 42 |
| European efficiency (%) | 97.10 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Display | w/o display |
| Max. short circuit current (A) total | 55.00 |
| MPP max. voltage range input (V) | 530.00 |
| Max. efficiency (%) | 97.60 |
| Max. output current (A) | 18.20 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Feed-in phases | 1 |
| MPP min. voltage range input (V) | 65.00 |
| Charging voltage (V) | 150V-455V |
| Min. voltage range input (V) | 65 |
| Charging current (A) | 22.00 |
| Intrastat product number (HS-code) | 85044084 |
|---|---|
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Manufacturer item name | Primo GEN24 4.0 |
| Pal. dim. LxBxH (mm) | 1200X800X1750 |
|---|---|
| Amount per Pallet | 16 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 53.00 |
| Width incl. packaging (cm) | 48.00 |
| Weight incl. packaging (Kg) | 19.000 |
| Height incl. packaging (cm) | 17.00 |
| Length without packaging (mm) | 530.00 |
|---|---|
| Weight without packaging (kg) | 15.400 |
| Height without packaging (mm) | 165.00 |
| Width without packaging (mm) | 474.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 |
