PRIMO 8.2-1 **not DE**

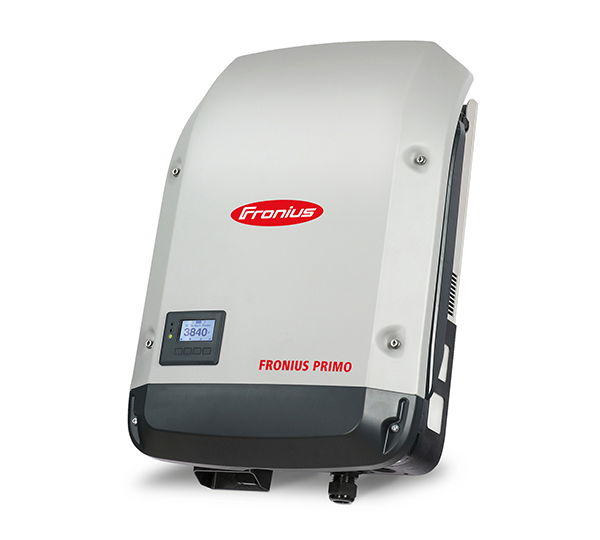

string inverter Fronius PRIMO 8.2-1
Art-No.
0123560
Manufacturer No.
4,210,060
Product details
Product information "PRIMO 8.2-1 **not DE**"
Not suitable for Germany.
With power classes from 3 to 8.2* kW, the Fronius Primo series offers the ideal solution for small home systems. Flexible in wiring and connectivity, the standard communication package includes everything from Wi-Fi and Ethernet to digital inputs and outputs. Combined with the Fronius Portal, it's a complete package.
Product advantages:
• Quick installation thanks to the SnapIN concept
• Extensive COM interfaces
Product specifications:
• AC rated power: 8.2* kW
• Power phases: 1
• AC mains voltage: 230 V
• Number of MPPTs: 2
• Max. DC input voltage: 1000 V
• nterfaces: 2 x RS422, WLAN, 2 x Ethernet, 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 645 x 431 x 204 mm
• Weight: 21.5 kg
*These power classes cannot be throttled to 4.6 kVA according to VDE-AR-N 4105 and are therefore not permitted for installation in Germany.
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 27 |
| Start input voltage (V) | 80 |
| Max. efficiency (%) | 97.80 |
| Min. temperature ambient (°C) | -40 |
| Interface 2 | W-Lan |
| Step-Up converter | no |
| Max. generator power DC (kWp) | 12.30 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Display | with display |
| Max. AC power (kVA) | 8.20 |
| Arc Fault Circuit Interrupter | no |
| Max. short circuit current (A) total | 54.00 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current per MPPT (A). | 18 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| European efficiency (%) | 97.50 |
| Max. input current DC (A) total | 36.00 |
| Degree of protection IP | IP65 |
| MPP min. voltage range input (V) | 80.00 |
| Integrated DC switch | yes |
| AC nominal power (kW) | 8.20 |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Contact ripple control receiver | yes |
| Feed-in phases | 1 |
| Max. output current (A) | 35.70 |
| Intrastat product number (HS-code) | 85044084 |
|---|---|
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Manufacturer item name | Primo 8.2-1 |
| Pal. dim. LxBxH (mm) | 1200x800x1850 |
|---|---|
| Height incl. packaging (cm) | 29.00 |
| Width incl. packaging (cm) | 55.00 |
| Length incl. packaging (cm) | 78.00 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 326.00 |
| Weight incl. packaging (Kg) | 25.800 |
| Height without packaging (mm) | 204.00 |
|---|---|
| Length without packaging (mm) | 645.00 |
| Weight without packaging (kg) | 21.500 |
| Width without packaging (mm) | 431.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 |
