Lynx D15.0-10 + GW10KN-ET Plus+
Set
HV storage system, 15.0 kWh usable, 3-phase
Art-No.
0159450
Product details
Product information "Lynx D15.0-10 + GW10KN-ET Plus+"
This set contains the components for floor mounting the storage unit. If required, this can be replaced with the wall mounting kit in the same quantity.
A maximum of 4 storage modules can be stacked on top of each other. For > 4 modules, installation in two separate towers is required.
Even in the lower power classes of the Goodwe ET Hybrid series, from 5 to 10 kW, the new Lynx D storage systems are a real pleasure to use. Quick and easy installation or retrofitting is possible thanks to the module's integrated BMS. With up to eight batteries, a usable capacity of 40.0 kWh is easily achieved. Combined with the hybrid's impressive features, this is an attractive system for home use.
Product advantages:
• Emergency power with UPS function < 10 ms
• 16 A input current per MPPT
• Unlimited expansion thanks to integrated BMS
• Up to 8 storage elements in the system (40.0 kWh)
• Certified battery safety according to VDE 2510-50
System product features:
• AC power: 10.0 kW
• AC connection: 400 V, 3-phase
• Number of MPPTs: 2
• Communication: WiFi, RS485
• Protection class: IP66
• Cooling: passive
• Dimensions: 516 x 415 x 180 mm (HxWxD)
• Weight: 24.0 kg
• Energy meter and WiFi kit included with inverter
Storage product features:
• Battery capacity (usable): 15.0 kWh
• Expansion time window: unlimited
• System configuration: 1 to 8 units
• Cell chemistry: LFP
• Nominal voltage: 320 - 480 V
• Communication: CAN
• Cooling: Passive
• Protection class: IP66
• Installation: Floor (wall mounting optional)
• Dimensions: 1180 x 700 x 170 mm (HxWxD)
• Weight: 52.0 kg per module
• Warranty: 10 years
Conclusion:
The new, powerful combination from Goodwe. Installation is a pleasure.
Scope of delivery:

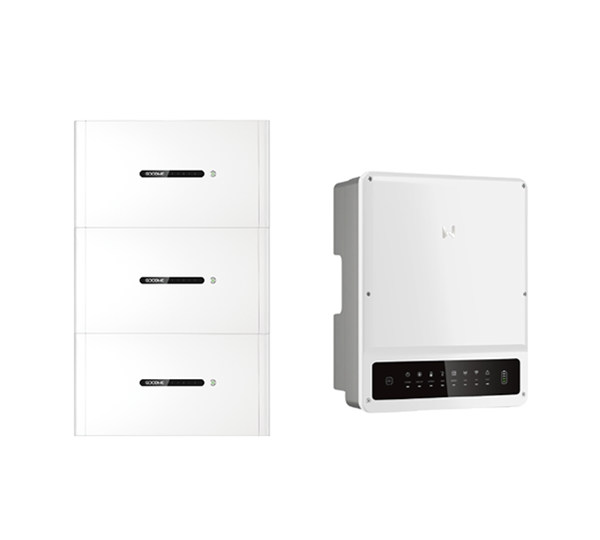

• 1 x GW10KN-ET Plus+ (16A) hybrid inverter, including meter (item 0152677)
• 3 x Goodwe Lynx D 5.0-10 storage modules (item 0158717)
• 1 x Goodwe Lynx D stand (item 0158718)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods Weight (net) (kg) | 182.700 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
GW10KN-ET PLUS 16A (DC/WIFI/3P-METER/BACKUP)0152677
-
Lynx D 5.0-100158717
-
GW10KN-ET PLUS 16A (DC/WIFI/3P-METER/BACKUP)0152677
-
Lynx D 5.0-100158717
Technical details
| Topology | transformerless |
|---|---|
| Max. AC power (kVA) | 11.00 |
| Max. short circuit current (A) total | 42.40 |
| Max. input current per MPPT (A). | 16 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| MPP max. voltage range input (V) | 850.00 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Surge protection AC | type 3 |
| Max. output current (A) | 16.50 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| European efficiency (%) | 97.50 |
| Max. short circuit current per MPPT (A) | 21,2 |
| Display | w/o display |
| Max. generator power DC (kWp) | 15.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. efficiency (%) | 98.20 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| Max. nominal charging power (kW) | 10.00 |
| Usable capacity (kWh) | 15.00 |
| Amount connected phases | 3 |
| Max. discharging power (kW) | 10.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer item name | LX D15.0-10*GW10KN-ET PLUS |
| Dangerous goods Weight (net) (kg) | 182.700 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 201.700 |
|---|
| Weight without packaging (kg) | 182.700 |
|---|
| Warranty provider | GoodWe |
|---|
