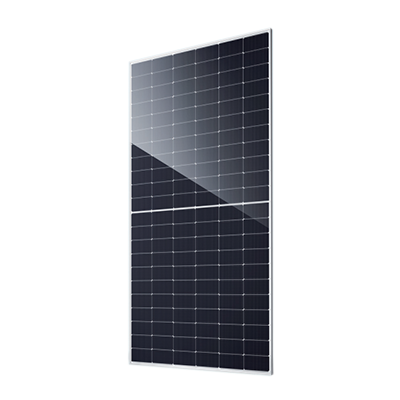

JAM66D45-630/LB
Glass-glass, bifacial, MC4 Evo 2A
Art-No.
0164012
Manufacturer No.
JAM66D45-630/LB
Product details
Product information "JAM66D45-630/LB"
For modules larger than 3 m², consultation with the state building regulations is required.
JA Solar is a leading global provider of photovoltaic power generation solutions. JA Solar's JAM66D45 LB solar module with an output of 630 Wp is equipped with bifacial technology, which enables power generation on both sides. This technology increases yield and improves energy efficiency by utilising both the front and back sides of the PV module. In addition, the module has improved low-light performance, ensuring very good performance even at low irradiation. JA Solar offers a 30-year performance warranty for this product.
Product advantages:
• Bifacial power generation
• Improved low-light performance
• 30 years performance warranty
Product features:
• Power rating Pmax: 630 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: silver
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2A
• Cable length: 1.6 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: UL type 29 / class C
• Dimensions: 2382 x 1134 x 30 mm
• Weight: 33.1 kg
• Warranty: 30 years performance warranty and 12 years product warranty
Technical details
| Connector type | MC4 Evo 2A |
|---|---|
| Nominal voltage Umpp (V) | 40.70 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Temperature coefficient Uoc (%/C) | -0.2500 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Short circuit current Isc (A) | 16.18 |
| Frame colour | silver |
| Length of cable plus (cm) | 160.00 |
| Temperature coefficient Pmpp (%/C) | -0.2900 |
| Module structure | glass-glass |
| Cell length (mm) | 210.000 |
| Max. surface load capacity testload(Pa) | 5400 |
| Frame type | framed |
| Cell width (mm) | 182.000 |
| Cell type | monocrystalline |
| Nominal current Impp (A) | 15.48 |
| Cable core cross section (mm²) | 4.00 |
| Power tolerance | +3 % |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Max. reverse current (A) | 35 |
| Power rating Pmax (Wp) | 630 |
| Open circuit voltage Uoc (V) | 48.90 |
| Length of cable minus (cm) | 160.00 |
| Number of cells along | 22 |
| Number of cells (pieces) | 132 |
| Busbars (pcs) | 16 |
| Cell cut | half cut |
| Module efficiency (%) | 23.30 |
| Glass thickness front side (mm) | 2.00 |
| Temperature coefficient Isc (%/C) | 0.0450 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | JAM66D45-630/LB |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer | JA Solar |
| Certificate 2 | Protection Class 2 |
| Pal. dim. LxBxH (mm) | 1250x2400x1150 |
|---|---|
| Width incl. packaging (cm) | 113.40 |
| Amount p. Cont. | 648 |
| Pal. weight (kg) | 1255.00 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 238.20 |
| Weight incl. packaging (Kg) | 33.100 |
| Amount Pal. p. Cont. | 18 |
| Height incl. packaging (cm) | 3.00 |
| Amount per Pallet | 36 |
| Length without packaging (mm) | 2382.00 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Weight without packaging (kg) | 33.100 |
| Height without packaging (mm) | 30.00 |
| Performance warranty (yr) | 30 |
|---|---|
| Initial % for linear warranty | 99 |
| Standard product warranty (yr) | 12 |
| Linear degression p.a. in % | 0,4 |
| Product warranty (yr) | 12 |
| Warranty provider | JA Solar |
