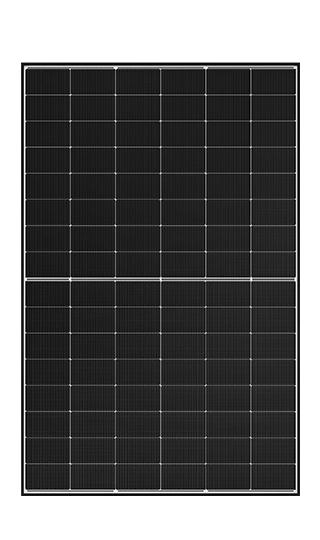

Hi-MO 7 LR8-48HGD 445M
Glass-glass, bifacial, MC4-EVO 2
Art-No.
0159931
Manufacturer No.
LR8-48HGD-445M
Product details
Product information "Hi-MO 7 LR8-48HGD 445M"
The Chinese company Longi is one of the world's leading providers of photovoltaic solutions. The LR8-48HGD solar module with an output of 445 Wp is part of the Hi-MO 7 product range and is based on the particularly powerful HPDC cell technology. It was developed for demanding application scenarios and is characterised by its glass-glass structure, which makes it particularly reliable and robust. Products in the Hi-MO 7 series offer outstanding power generation performance and product reliability. This makes them particularly suitable for applications with high temperatures and limited space. In addition, the high bifaciality and optimised temperature coefficient ensure maximum energy yield. Longi emphasises the high quality of this product with a 30-year performance warranty.
Product advantages:
• Innovative cell technology
• High reliability
• Maximum energy yield
• 30-year performance warranty
Product features:
• Power rating Pmax: 445 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2
• Cable length: 1.4 m
• Glass thickness: 2.0+1.6mm heat-strengthened glass
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: UL type 38, IEC - Class C
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 23.0 kg
• Warranty: 30 years performance warranty and 12 years product warranty
Technical details
| Frame colour | black |
|---|---|
| Power rating Pmax (Wp) | 445 |
| Temperature coefficient Pmpp (%/C) | -0.2800 |
| Open circuit voltage Uoc (V) | 34.98 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Max. wind speed capacity testload(Pa) | 2400 |
| Short circuit current Isc (A) | 16.11 |
| Module structure | glass-glass |
| Max. surface load capacity testload(Pa) | 5400 |
| Temperature coefficient Uoc (%/C) | -0.2300 |
| Frame type | framed |
| Cell type | monocrystalline |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Max. reverse current (A) | 35 |
| Connector type | MC4 Evo 2 |
| Module efficiency (%) | 22.00 |
| Length of cable plus (cm) | 140.00 |
| Length of cable minus (cm) | 140.00 |
| Busbars (pcs) | 16 |
| Nominal current Impp (A) | 15.41 |
| Cell cut | half cut |
| Glass thickness front side (mm) | 2.00 |
| Power tolerance | 3% |
| Temperature coefficient Isc (%/C) | 0.0450 |
| Number of cells (pieces) | 96 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | LR8-48HGD 445M |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer | Longi |
| Width incl. packaging (cm) | 113.40 |
|---|---|
| Pal. dim. LxBxH (mm) | 1800x1150x1250 |
| Amount p. Cont. | 864 |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Weight incl. packaging (Kg) | 23.000 |
| Amount Pal. p. Cont. | 24 |
| Amount per Pallet | 36 |
| Width without packaging (mm) | 1134.00 |
|---|---|
| Length without packaging (mm) | 1762.00 |
| Weight without packaging (kg) | 23.000 |
| Height without packaging (mm) | 30.00 |
| Performance warranty (yr) | 30 |
|---|---|
| Initial % for linear warranty | 99 |
| Linear degression p.a. in % | 0,40 |
| Standard product warranty (yr) | 12 |
| Warranty provider | Longi |
