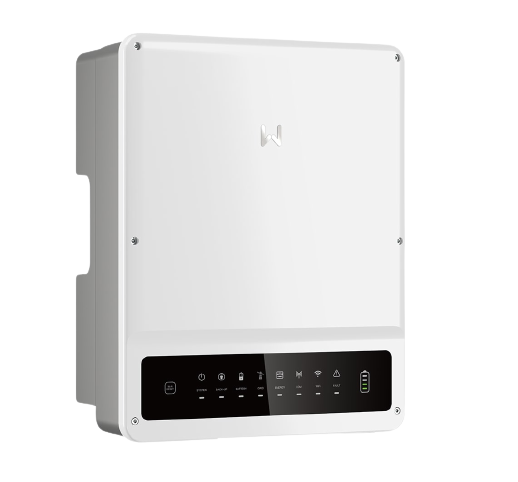

GW6.5KN-ET PLUS 16 A (+DC/WIFI/SMART-METER/BACKUP)
three-phase hybrid inverter with DC switch
Art-No.
0152673
Manufacturer No.
ETU6500-04-01P
Product details
Product information "GW6.5KN-ET PLUS 16 A (+DC/WIFI/SMART-METER/BACKUP)"
With its wide battery voltage range from 180V to 600V, this device allows flexible compatibility with several lithium battery systems on the market. The incoming PV generator output can be up to 30% above the nominal output, which leads to a better energy yield on very hot and very cold days. The built-in UPS (emergency power) function enables switching in the event of a power failure within 10 milliseconds to guarantee an uninterruptible power supply for connected consumers. The inverter also has an open battery management interface, which meets the requirements of some energy providers.
The 3-phase meter is enclosed with the inverter.
Technical details
| Topology | transformerless |
|---|---|
| Charging current (A) | 25.00 |
| Max. short circuit current (A) total | 42.40 |
| Max. input current per MPPT (A). | 16 |
| Interface 2 | W-Lan |
| European efficiency (%) | 97.20 |
| Step-Up converter | no |
| Protection degree | IP66 |
| Min. voltage range input (V) | 180 |
| Number of independent MPPT (pcs) | 2 |
| MPP max. voltage range input (V) | 850.00 |
| Contact for self-consumption optimization (e.g. for heat pump) | 1 |
| Backup system full | no |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Surge protection AC | type 3 |
| Min. temperature ambient (°C) | -35 |
| Charging voltage (V) | 180 - 600 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Battery Connection | DC |
| Peak shaving | yes |
| Max. short circuit current per MPPT (A) | 21,2 |
| Display | w/o display |
| Max. efficiency (%) | 98.00 |
| Start input voltage (V) | 180 |
| Max. AC power (kVA) | 7.15 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| AC nominal power (kW) | 6.50 |
| Surge protection DC | type 2 |
| Contact ripple control receiver | yes |
| Backup system light | yes |
| Integrated AC switch | no |
| Max. output current (A) | 10.80 |
| Max. generator power DC (kWp) | 9.70 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer item name | GW6.5KN-ET |
| Length incl. packaging (cm) | 68.50 |
|---|---|
| Height incl. packaging (cm) | 29.00 |
| Pal. dim. LxBxH (mm) | 1120x720x990 |
| Amount per Pallet | 6 |
| Weight incl. packaging (Kg) | 29.000 |
| Pal. weight (kg) | 192.00 |
| Pack. material | cardboard box |
| Amount p. Cont. | 384 |
| Width incl. packaging (cm) | 54.00 |
| Length without packaging (mm) | 415.00 |
|---|---|
| Weight without packaging (kg) | 24.000 |
| Width without packaging (mm) | 516.00 |
| Height without packaging (mm) | 180.00 |
| Warranty provider | GoodWe |
|---|---|
| Standard product warranty (yr) | 5 |
| Product warranty (yr) | 5 |
