EzLogger Pro (LAN)
Data logger for up to 60 inverters
Art-No.
0132753
Manufacturer No.
GLL10078-03-00P
Product details
Product information "EzLogger Pro (LAN)"
The EzLogger Pro is suitable, amongst other things, for connection to a remote control receiver and is compatible with standard GoodWe grid-connected inverters. It cannot be used in combination with GoodWe hybrid inverters from the ES, EM or ET series.

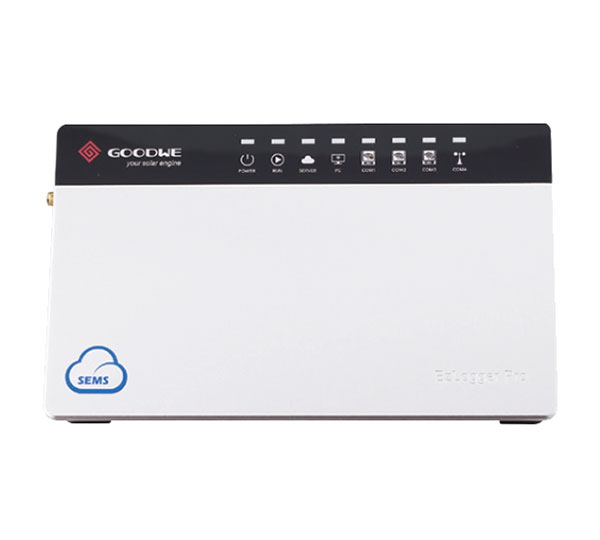

The EzLogger Pro is a system monitoring device developed by GoodWe. When used in conjunction with a GoodWe solar inverter, it reliably records and stores all key system data and continuously transmits this data via the internet to the GoodWe portal.
Product advantages:
• Connection of up to 60 PV inverters
• Communication distance up to 1000 m
Product features:
• AC mains voltage: 240 V
• Communication: Ethernet, RS485
• Protection class: IP20
• Dimensions: 190 x 118 x 37 mm
• Weight: 0.50 kg
Technical details
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | EzLogger Pro |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85049090 |
| Width incl. packaging (cm) | 17.00 |
|---|---|
| Length incl. packaging (cm) | 24.00 |
| Height incl. packaging (cm) | 10.00 |
| Weight incl. packaging (Kg) | 1.000 |
| Length without packaging (mm) | 190.00 |
|---|---|
| Weight without packaging (kg) | 0.500 |
| Height without packaging (mm) | 37.00 |
| Width without packaging (mm) | 118.00 |
| Warranty provider | GoodWe |
|---|---|
| Standard product warranty (yr) | 2 |
| Product warranty (yr) | 2 |
