ESA - All-in-One Home Storage System
Compact storage system, 32.0 kWh, 20 kW, 3-phase
Art-No.
0163773
Product details
Product information "ESA - All-in-One Home Storage System"
Up to six storage modules can be installed in a single unit with the inverter. For more storage modules, they must be arranged in a second or third tower. The ESA Battery Expansion Kit is required for each additional tower.
The three-phase hybrid inverters of the Goodwe ETA-G20 series, combined with the BAT-D high-voltage storage systems, form the compact ESA all-in-one energy storage system. All components create a harmonious and visually appealing unit. Up to 12 storage modules in four capacity sizes from 5 to 9 kWh can be flexibly combined, enabling a total usable capacity of up to 108 kWh. The power classes of the hybrid inverters range from 5 to 30 kW. Thanks to its comprehensive communication, protection, and string connection features, the system is ideal for residential to small commercial applications. The integrated backup connection supplies even sensitive loads with a switchover time of less than 4 ms.
Product advantages:
• Visually appealing compact system
• Flexible combinations up to 108 kWh
• Up to 4 MPPTs and 42 A input current
• Can be retrofitted indefinitely
System product specifications:
• AC rated power: 20.0 kW
• Feed-in phases: 3
• AC mains voltage: 400 V
• Storage connection: High voltage
• Number of MPPTs: 4
• Max. DC input voltage: 1000 V
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc fault detection: Yes
• Communication: Wi-Fi, LAN, RS485, Bluetooth, RS485, 4G (optional)
• Protection class: IP66
• Cooling: Active
• Dimensions: 800 x 340 x 270 mm
• Weight: 34.0 kg
• Base included
Storage product specifications:
• Battery capacity (usable): 32.0 kWh
• Storage model: Goodwe GW 8.3 BAT-D-G20
• Storage type: High voltage
• Expansion timeframe: Unlimited
• Number of storage modules in one unit: Up to 12
• Cascadable units: -
• Cell chemistry: LFP
• Communication: CAN
• Cooling: Active
• Cell heating: No
• Protection class: IP66
• Dimensions: 800 x 326 x 270 mm
• Weight: 79.0 kg per storage module
Scope of delivery:

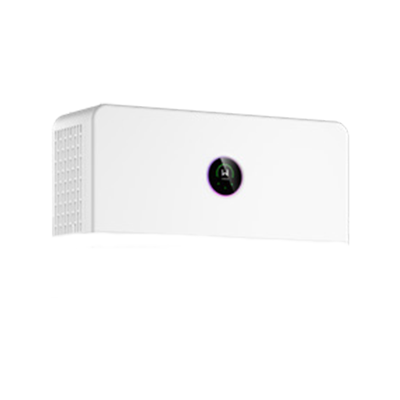

• 1 x Goodwe GW20K-ETA-G20, hybrid inverter (item 0163599)
• 4 x Goodwe GW 8.3 BAT-D-G20, storage module (item 0163603)
Wichtige technische Daten
| Dangerous goods Weight (net) (kg) | 205.920 |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
GW20K-ETA-G200163599
-
GW8.3-BAT-D-G200163603
-
GW20K-ETA-G200163599
-
GW8.3-BAT-D-G200163603
Technical details
| Topology | transformerless |
|---|---|
| MPP min. voltage range input (V) | 120.00 |
| Max. input current per MPPT (A). | 21/21/21/21 |
| Max. output current (A) | 43.50 |
| Max. input current DC (A) total | 84.00 |
| European efficiency (%) | 97.30 |
| Max. short circuit current (A) total | 104.00 |
| Max. generator power DC (kWp) | 40.00 |
| Protection degree | IP66 |
| Display | with display |
| Start input voltage (V) | 150 |
| Number of independent MPPT (pcs) | 4 |
| Usable capacity (kWh) | 32.00 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. AC power (kVA) | 20.00 |
| Total number of string inputs | 4 |
| MPP max. voltage range input (V) | 950.00 |
| Capacity extendable later | yes without restriction |
| Rapid shutdown | yes |
| Min. temperature ambient (°C) | -20 |
| AC nominal power (kW) | 20.00 |
| Battery cell chemistry | LFP |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Surge protection DC | type 2 |
| Backup system light | yes |
| Grid protection | yes |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current per MPPT (A) | 26/26/26/26 |
| String fuses | not included |
| Backup system full | yes |
| Dangerous goods Weight (net) (kg) | 205.920 |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Manufacturer item name | GW8.3-BAT-D-G20*GW20K-ETA-G20 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 380.400 |
|---|
| Weight without packaging (kg) | 350.000 |
|---|
