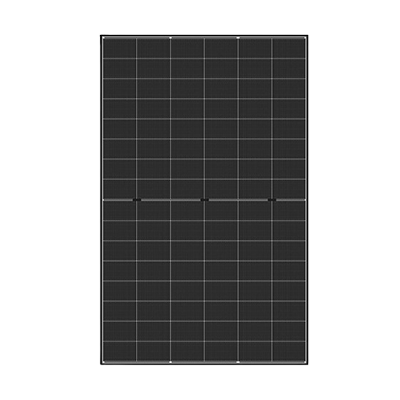

ECO LINE N-TYPE HJT G-G 445w frameless (SU 34)
Glass-glass, bifacial, transparent, MC4 Evo 2
Art-No.
0158333
Product details
Product information "ECO LINE N-TYPE HJT G-G 445w frameless (SU 34)"
The German manufacturer Luxor produces its premium solar modules in Asia and Europe in accordance with the highest standards. The LX-445M/182R-96+ GG solar module with an output of 445 Wp has a higher mechanical and thermal load capacity thanks to its robust double-glass construction. It is therefore particularly suitable for demanding applications. The anti-reflective glass improves light absorption, while the bifacial technology enables power generation on both sides and a higher energy yield. Luxor offers a 30-year warranty on this module.
Product advantages:
• Manufactured to the highest standards in Asia and Europe
• Robust double-glass construction
• Power generation on both sides thanks to bifacial technology
• 30-year performance and product warranty
Product features:
• Power rating Pmax: 445 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: frameless
• Backsheet colour (cell side): transparent
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2
• Cable length: 1.1 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 2400 Pa (snow) / 1600 Pa (wind)
• Fire protection class: C (IEC 61730)
• Dimensions: 1756 x 1128 x 5 mm
• Weight: 23.5 kg
• Warranty: 30 years performance warranty and 30 years product warranty
Technical details
| Power rating Pmax (Wp) | 445 |
|---|---|
| Power tolerance | +6,49 Wp |
| Max. reverse current (A) | 30 |
| Bifacial | yes |
| Max. surface load capacity testload(Pa) | 2400 |
| Max. system voltage (V) | 1500 |
| Number of cells across | 6 |
| Number of cells along | 16 |
| Protection degree | IP67 |
| Temperature coefficient Uoc (%/C) | -0.2600 |
| Module structure | glass-glass |
| Max. wind speed capacity testload(Pa) | 1600 |
| Frame colour | none |
| Module efficiency (%) | 22.26 |
| Cell width (mm) | 182.000 |
| Length of cable plus (cm) | 110.00 |
| Backsheet colour cell side | transparent |
| Cell type | monocrystalline |
| Temperature coefficient Pmpp (%/C) | -0.2400 |
| Integrated module optimization | no |
| Nominal voltage Umpp (V) | 30.87 |
| Connector type | MC4 Evo 2 |
| Temperature coefficient Isc (%/C) | 0.0400 |
| Cell composition | heterojunktion |
| Length of cable minus (cm) | 110.00 |
| Frame type | frameless |
| Open circuit voltage Uoc (V) | 37.88 |
| Cell length (mm) | 105.000 |
| Busbars (pcs) | 16 |
| Short circuit current Isc (A) | 15.35 |
| Cell cut | half cut |
| Nominal current Impp (A) | 14.43 |
| Glass thickness front side (mm) | 2.00 |
| Number of cells (pieces) | 96 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | Luxor Solar |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer item name | LX-445M\/182R-96+ GG |
| Certificate 2 | Fire Protection Class 1 |
| Amount per Pallet | 34 |
|---|---|
| Pack. material | cardboard box |
| Amount Pal. p. Cont. | 18 |
| Amount p. Cont. | 612 |
| Width incl. packaging (cm) | 112.80 |
| Height incl. packaging (cm) | 0.50 |
| Weight incl. packaging (Kg) | 23.500 |
| Length incl. packaging (cm) | 175.60 |
| Length without packaging (mm) | 1756.00 |
|---|---|
| Width without packaging (mm) | 1128.00 |
| Weight without packaging (kg) | 23.500 |
| Height without packaging (mm) | 5.00 |
| Performance warranty (yr) | 30 |
|---|---|
| Initial % for linear warranty | 99 |
| Standard product warranty (yr) | 30 |
| Product warranty (yr) | 30 |
| Warranty provider | Luxor Solar |
| Linear degression p.a. in % | 0,34 |
