ECO LIGHT 25.0-3-S

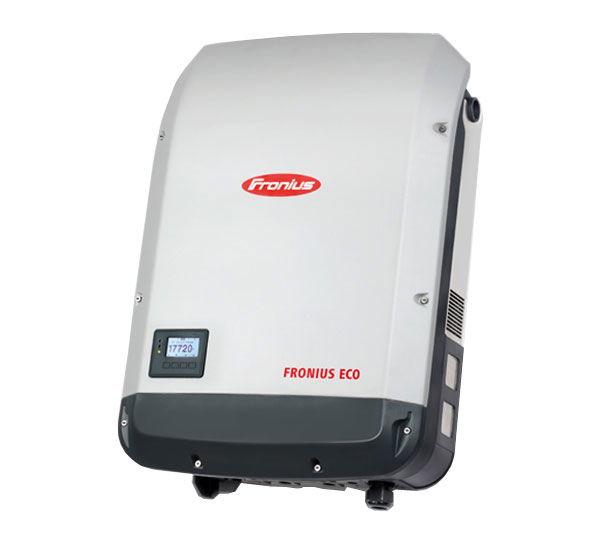

string inverter Fronius ECO LIGHT 25.0-3-S
Art-No.
0123415
Manufacturer No.
4,210,056,041
Product details
Product information "ECO LIGHT 25.0-3-S"
without WLAN, LAN and web server
When the unit is registered within 30 months of the warranty can be extended by 3 years (total 5 years, "Fronius warranty plus", transfer of the cost of material performance, service and transport).
Technical details
| Topology | transformerless |
|---|---|
| Max. output current (A) | 37.90 |
| AC nominal power (kW) | 25.00 |
| Total number of string inputs | 6 |
| Step-Up converter | no |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Display | with display |
| MPP max. voltage range input (V) | 850.00 |
| Interface 2 | USB |
| Max. input current DC (A) total | 44.20 |
| Arc Fault Circuit Interrupter | no |
| MPP min. voltage range input (V) | 580.00 |
| Surge protection AC | type 3 |
| Start input voltage (V) | 650 |
| Max. input voltage DC (V) | 1000.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| European efficiency (%) | 98.00 |
| Max. short circuit current (A) total | 71.60 |
| Number of independent MPPT (pcs) | 1 |
| DC connector type | screw-type terminal |
| Max. generator power DC (kWp) | 35.70 |
| Max. efficiency (%) | 98.20 |
| Min. voltage range input (V) | 580 |
| Integrated DC switch | yes |
| Max. input current per MPPT (A). | 44,20 |
| Surge protection DC | type 2 |
| Contact ripple control receiver | yes |
| Max. AC power (kVA) | 25.00 |
| Manufacturer item name | ECO 25.0-3-S Light |
|---|---|
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. dim. LxBxH (mm) | 1200x800x1520 |
|---|---|
| Width incl. packaging (cm) | 59.00 |
| Height incl. packaging (cm) | 34.00 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 39.000 |
| Amount per Pallet | 8 |
| Length incl. packaging (cm) | 79.00 |
| Length without packaging (mm) | 725.00 |
|---|---|
| Width without packaging (mm) | 510.00 |
| Weight without packaging (kg) | 35.700 |
| Height without packaging (mm) | 225.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 |
