BYD Max Lite 45 + GoodWe GW 40K-ET
Set
HV storage system, 45.0 kWh usable, 40 kW inverter
Art-No.
0159155
Product details
Product information "BYD Max Lite 45 + GoodWe GW 40K-ET"
Based on your project-specific key data and planned components, please consider the need for an external EMS to provide, for example, the required control interfaces. This may need to be added separately. We would be happy to assist you in selecting suitable providers.
The GM330 smart meter is included. Suitable measuring transducers still need to be added.
This XL storage package from GoodWe and BYD is the ideal system module for small-commercial applications. Both the system and the storage unit can be cascaded as required. The inverter equipment provides the necessary flexibility with up to 4 MPP trackers, high input currents, overvoltage protection and AFCI. Various scenarios such as self-consumption, peak shaving, time-of-use and grid support can be realised with the system. In combination with the STS box (Static Transfer Switch), the usual reliable switching to UPS level is also guaranteed in backup operation. Thanks to modular storage racks, each with a usable capacity of 7.5 kWh, the Max Lite from BYD can be equipped as required. This means that 30 to 90 kWh are possible per cabinet.
Product advantages:
• Flexible application options
• Up to 42 A input current per MPPT
• Integrated DC type 1+2 / AC type 2 overvoltage protection
• Up to 32 storage units can be cascaded in parallel

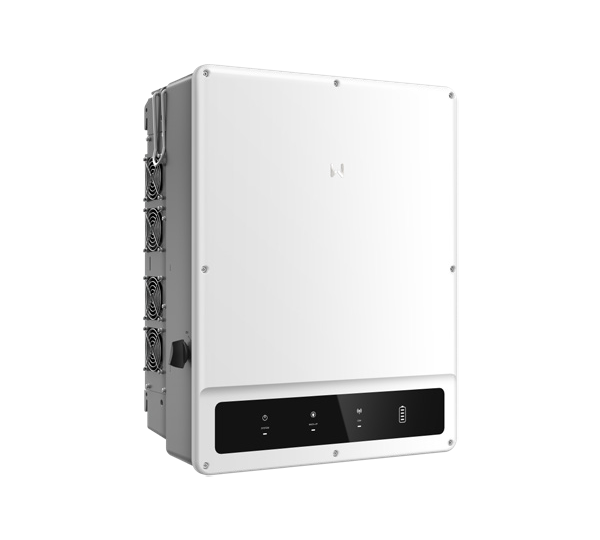

Product features System:
• AC power: 40 kW
• Mains connection: 400V
• Connection phases: 3-phase
• Number of MPPT: 3Â
• DC input current per MPPT: 42+32+42 AÂ
• Storage connections: 1
• Communication: Wifi, Ethernet, 4G, RS485
• Protection class: IP66
• Cooling: active
• Dimensions: 660 x 520 x 260 mm (L x W x H)
• Weight: 62.0 kgÂ
• WIFI-LAN dongle + Smart Meter GM330 included in delivery
Product features Storage:
• Capacity (usable): 45.0 kWh
• Storage type: High-voltage
• Extension time window: unlimited
• Number of storage modules in one unit: 4 to 12
• Cascadable units: up to 32 in parallel
• Cell chemistry: LFP
• Communication: CAN, RS485, Modbus TCP
• Cooling: Air conditioning
• Protection class: IP55
• Cabinet dimensions: 1400 x 1100 x 2100 mm (L x W x H)
• Weight: Cabinet 400.0 kg, 6 x storage module 75.0 kg each
Conclusion:
A top combination for small commercial systems. Reliable and powerful.
Scope of delivery:
• 1 x GoodWe GW40 ET-10 (article 0159103)
• 1 x BYD Max Lite Cabinet (article 0158915)
• 6 x BYD Max Lite storage module (article 0158908)
Wichtige technische Daten
| Dangerous goods Weight (net) (kg) | 450.000 |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
Battery-Max Lite Cabinet0158915
-
Battery-Max Lite storage module0158908
-
GW40K-ET-100159103
-
GW40K-ET-100159103
Technical details
| Topology | transformerless |
|---|---|
| Total number of string inputs | 6 |
| Backup system full | yes with supply |
| Start input voltage (V) | 200 |
| MPP max. voltage range input (V) | 850.00 |
| Number of independent MPPT (pcs) | 3 |
| AC nominal power (kW) | 40.00 |
| Max. output current (A) | 60.60 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| MPP min. voltage range input (V) | 165.00 |
| Max. input current DC (A) total | 116.00 |
| European efficiency (%) | 97.50 |
| Capacity extendable later | yes without restriction |
| Commercial system | yes |
| Display | w/o display |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. generator power DC (kWp) | 60.00 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Max. AC power (kVA) | 40.00 |
| Backup system light | yes with supply |
| Protection degree | IP55 |
| Max. short circuit current per MPPT (A) | 55 |
| Usable capacity (kWh) | 45.00 |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 42 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods Weight (net) (kg) | 450.000 |
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | BATTERY-MAX LITE 45*GW40K-ET-10 |
| Dangerous goods class | 9 |
| Manufacturer | BYD + Goodwe |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 1011.900 |
|---|
| Weight without packaging (kg) | 932.000 |
|---|
