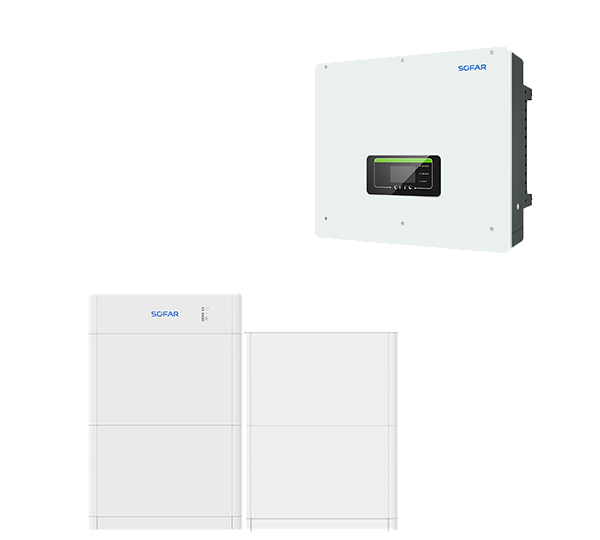

BTS E20-DS5 + HYD 15KTL-3PH Hybrid
Set
HV storage system, 19.0 kWh usable, 3-phase
Art-No.
0157363
Product details
Product information "BTS E20-DS5 + HYD 15KTL-3PH Hybrid"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Sofar Solar has updated the tried and tested HYD KTL-3PH series. Up to 22.5 amps of input current are now possible per string connection. This leaves the door wide open for the use of new high-performance modules, including bifacial ones. Integrated AC/DC surge protection and shadow management are still standard features. A direct-measuring inline meter and pre-assembled cable sets included in the scope of delivery make installation easier. Depending on the power class of 5 to 20 kW, up to 8 cascaded battery modules with a total usable capacity of 38.0 kWh are possible. The BMS built into each battery unit creates maximum flexibility.
Product advantages:
• All components from the same manufacturer
• Up to 22.5 amps input current per string connection
• 2 x 25 A battery connections
• Easier backup power supply thanks to built-in N/PE relay
• Modular storage system, flexibly expandable
System product features:
• AC power: 15 kW
• AC connection: 400 V, 3-phase
• Number of MPPTs: 2
• Max. input current per string: 22.5 A
• Connector: MC4
• Interfaces: RS485, WiFi, Bluetooth, Ethernet, 4 x dig. In (FRE)
• Protection class: IP 65
• Cooling: active
• Dimensions: 571 x 515 x 264 mm (HxWxD)
• Weight: 39.5 kg
• Warranty: 5 years
• Included in delivery: Inline Energy Meter 80A and cable sets for storage and meter
Storage product properties:
• Battery capacity (usable): 19.0 kWh
• Expansion time window: unlimited
• Cell chemistry: LFP
• Nominal voltage: 400 V
• Protection class: IP65
• Dimensions: 900+1100 x 708 x 170 mm (HxWxD)
• Weight: BDU Connection Box 7.5 kg, 4 x storage units 50.0 kg each
Conclusion:
Freshly launched - our Sofar hybrid storage sets. With all the functions you need plus a few more. The second battery connection enables very flexible storage expansion and high charging performance.
Scope of delivery:
• 1x Sofar BTS 5K-BDU connection box (item 0153956)
• 4x Sofar BTS 5K storage module incl. BMS (item 0157332)
• 1x Sofar BTS 5K extension (item 0153957)
• 1x Sofar HYD 15KTL-3PH (2024) hybrid WR, incl. meter (item
0157281)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods Weight (net) (kg) | 200.000 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
HYD 15KTL-3PH0157281
-
BTS 5K storage module0157332
-
BTS 5K-BDU Battery Connection Box0153956
-
HYD 15KTL-3PH0157281
-
BTS 5K storage module0157332
-
BTS 5K-BDU Battery Connection Box0153956
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 45 |
| Usable capacity (kWh) | 19.00 |
| Protection degree | IP65 |
| Max. short circuit current (A) total | 90.00 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. input current DC (A) total | 64.00 |
| Min. temperature ambient (°C) | -10 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Total number of string inputs | 4 |
| Capacity extendable later | yes without restriction |
| Max. output current (A) | 22.90 |
| Battery voltage | High Voltage |
| Max. input current per MPPT (A). | 32 |
| MPP min. voltage range input (V) | 180.00 |
| Battery cell chemistry | LFP |
| Max. efficiency (%) | 98.20 |
| Integrated DC switch | yes |
| Max. generator power DC (kWp) | 22.50 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 15.00 |
| Max. nominal charging power (kW) | 10.00 |
| MPP max. voltage range input (V) | 960.00 |
| Amount connected phases | 3 |
| Max. AC power (kVA) | 16.50 |
| Max. discharging power (kW) | 10.00 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Manufacturer item name | BTS E20-DS5*HYD 15KTL-3PH |
| Classification code | M4 |
| Manufacturer | SOFAR |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods Weight (net) (kg) | 200.000 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 297.000 |
|---|
| Weight without packaging (kg) | 254.500 |
|---|
