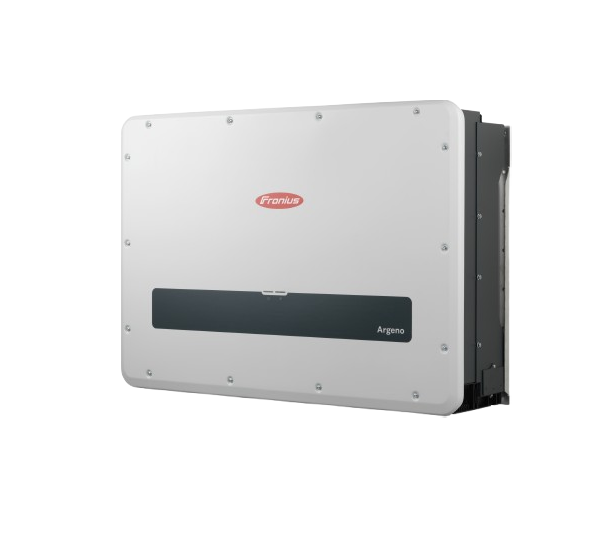

Argeno 125
PV-WR, 3-phase, 10 MPPT, AFCI, w/o display
Art-No.
0158405
Manufacturer No.
4,210,471
Product details
Product information "Argeno 125"
An additional Plant Controller / EMS is required to connect radio ripple control receivers, power control, etc.
The Argeno 125 from Fronius is the new player for the commercial segment. With 10 MPP trackers and 30 amps of input current each, it offers a high degree of flexibility. Maximum safety thanks to the integrated arc detection Arc Guard and overvoltage protection type 1+2 on AC and DC connections. Thanks to open interfaces, there are universal application options for energy management with Wattpilot, Ohmpilot & Co. The integrated data logger also has numerous connection options for external control signals or load management.
Product advantages:
• 30 A input current per MPPT / 20 A per string
• Integrated and interchangeable AC+DC overvoltage protection type 1+2
• Integrated AFCI arc detection
• Integrated data logger + web server
Product features:
• AC power: 125.0 kW
• AC connection: 400 V, 3-phase
• Number of MPPT: 10
• Connections per MPPT: 2
• DC input current: 30 A per MPPT / 20.0 A per string
• DC connector: Phoenix Contact SUNCLIX (counterparts included in the scope of delivery)
• Overvoltage protection: Type 1+2 on AC+DC with interchangeable elements
• Communication: 2 x Ethernet
• Interfaces: WSD (Wired Shutdown)
• Protection class: IP66
• Cooling: active
• Dimensions: 1070 x 755 x 330 mm (H x W x D)
• Weight: 90.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Number of independent MPPT (pcs) | 10 |
| Start input voltage (V) | 250 |
| Surge protection AC | type 1 and type 2 |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Max. input current per MPPT (A). | 30,0 |
| European efficiency (%) | 98.70 |
| Max. short circuit current (A) total | 375.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. AC power (kVA) | 125.00 |
| Display | w/o display |
| Max. efficiency (%) | 99.10 |
| Max. generator power DC (kWp) | 250.00 |
| Max. short circuit current per MPPT (A) | 37,5 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Max. input current DC (A) total | 300.00 |
| AC nominal power (kW) | 125.00 |
| Max. input voltage DC (V) | 1100.00 |
| Total number of string inputs | 20 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| MPP max. voltage range input (V) | 1000.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | Argeno 125.0 AFCI |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Fronius |
| Width incl. packaging (cm) | 81.30 |
|---|---|
| Height incl. packaging (cm) | 43.80 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 113.70 |
| Pal. dim. LxBxH (mm) | 1170x850x1490 |
| Weight incl. packaging (Kg) | 94.600 |
| Length without packaging (mm) | 1070.00 |
|---|---|
| Width without packaging (mm) | 755.00 |
| Weight without packaging (kg) | 85.200 |
| Height without packaging (mm) | 330.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 |
